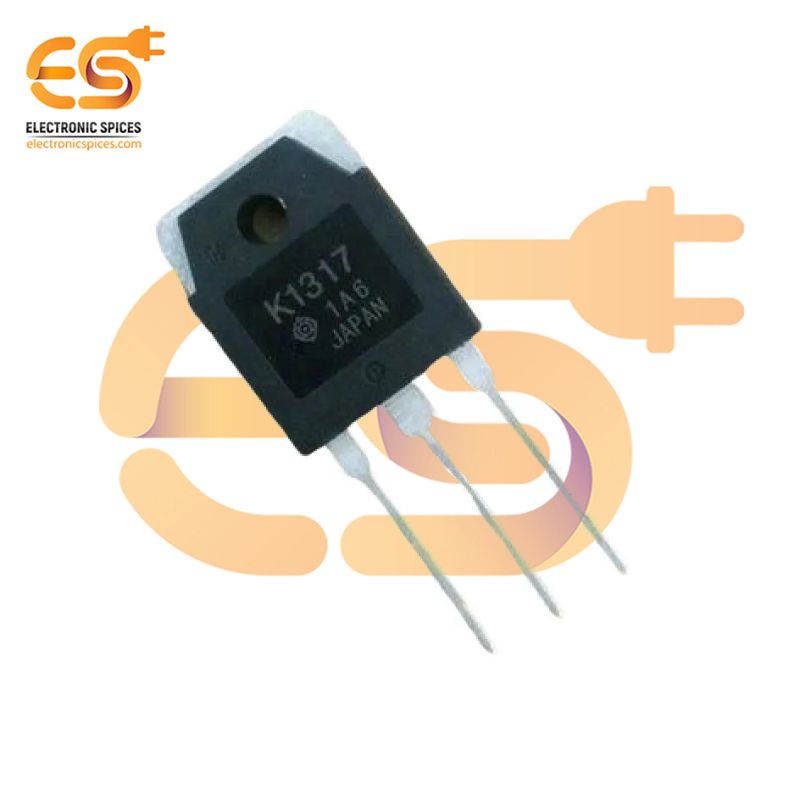

2SK1317 1500V 2.5A N-Channel Power MOSFET (TO-3P Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 1500V
- Collector Current (Ic): 2.5A
- Drain-Source Resistance (Rds On): 12Ohms
- Gate-Source Voltage (Vgs): 20V
- Configuration: Single
- Operating Temperature Range: -55 – 150°C
- Power Dissipation (Pd): 100W
SKU: YO8542A
2SK1317 1500V 2.5A N-Channel Power MOSFET (TO-3P Package)
The 2SK1317 is a 1500V, 2.5A N-Channel Power MOSFET designed for high-voltage applications, offering excellent performance in power electronics. Housed in the TO-3P package, this MOSFET is well-suited for systems requiring high voltage and reliable current handling, such as high-voltage power supplies, inverters, motor control circuits, and industrial equipment. With a drain-to-source voltage rating of 1500V, the 2SK1317 can operate in applications where high-voltage operation is necessary. This makes it an excellent choice for HVAC systems, solar inverters, and industrial power electronics where the MOSFET must withstand high voltage stress and manage large power loads. The 2.5A continuous drain current allows the device to handle moderate current applications effectively. Despite the high voltage rating, the 2SK1317 offers relatively low on-resistance which minimizes power loss during operation and ensures better energy efficiency in high-voltage switching applications.
Features:-
- Advanced Process Technology
- Fast Switching
- Fully Avalanche Rated
