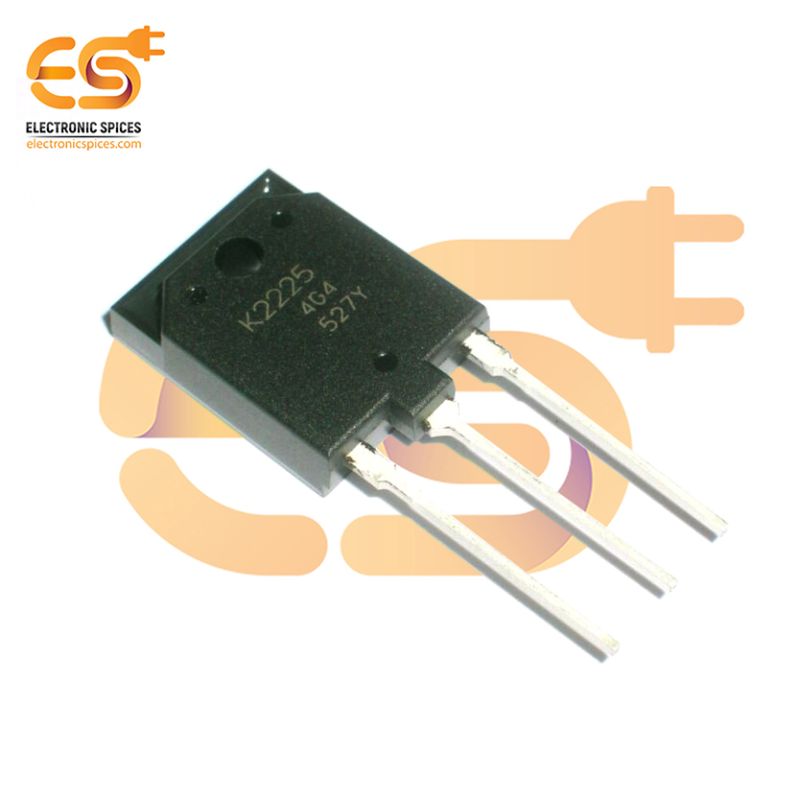

2SK2225 1500V 2A N-Channel Power MOSFET (TO-3PFM Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 1500V
- Continuous Drain Current (Id): 2A
- Drain-Source Resistance (Rds On): 12Ohms
- Gate-Source Voltage (Vgs): 20V
- Operating Temperature Range: -55 to 150°C
- Power Dissipation (Pd): 50W
SKU: ST8542A
2SK2225 1500V 2A N-Channel Power MOSFET (TO-3PFM Package)
The 2SK2225 is a 1500V 2A N-Channel Power MOSFET designed in a TO-3PFM package, making it suitable for high-voltage applications requiring robust performance and reliability. This MOSFET features a maximum drain-to-source voltage of 1500V and a continuous drain current of 2A, which allows it to handle significant power levels while maintaining efficient operation. The 2SK2225 is ideal for use in high-voltage switching applications, including power supplies, DC-DC converters, and motor control circuits where high voltage handling is required. The TO-3PFM package ensures good heat dissipation, which is crucial when dealing with higher voltages and currents, minimizing thermal stress on the component. This MOSFET utilizes a low gate charge to reduce switching losses and can operate at high frequencies with minimal delay, making it ideal for applications that demand efficient and rapid switching performance. With its high voltage and moderate current ratings, the 2SK2225 is particularly suitable for use in high-voltage power systems such as industrial equipment, high-voltage inverters, and audio amplifiers.
Features:-
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
