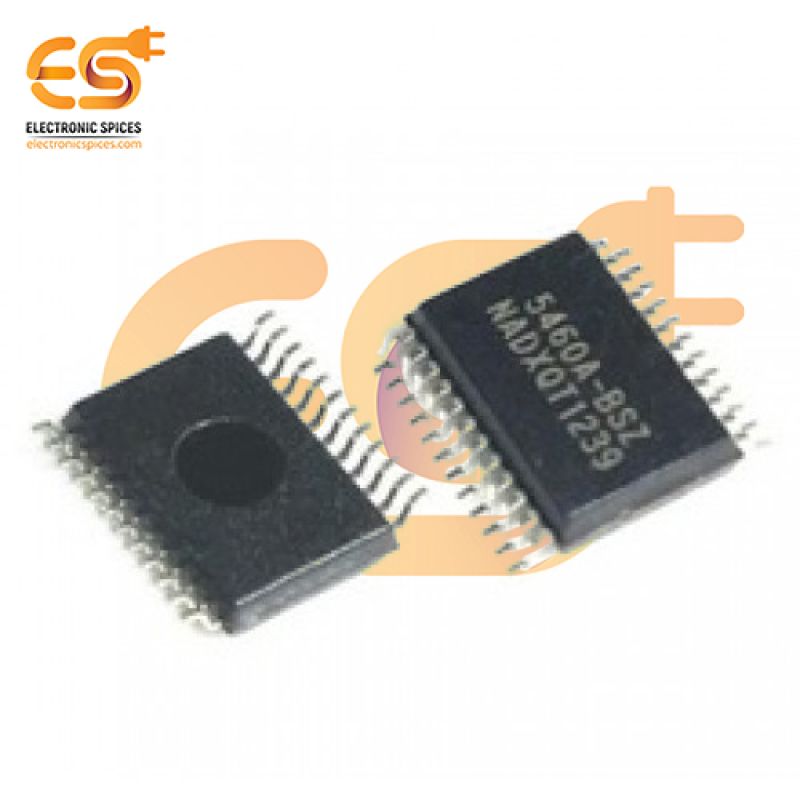

CS5460A Single Phase Bi-Directional Power/Energy SMD IC
Specification:-
- Power Supply Configurations VA+ = +5 V; VA- = 0 V; VD+ = +3.3 V to +5 V
- Typical Power Consumption <12 mW
- Output Current: ±25 mA
- Power Dissipation: 500 mW
- Storage Temperature: -65°C to 150 °C
- Input Current, Any Pin Except Supplies: ±10 mA
SKU: BK8501A
CS5460A Single Phase Bi-Directional Power/Energy SMD IC
The CS5460A is a high-precision single-phase bi-directional power and energy measurement IC designed for use in electrical metering applications. This integrated circuit is specifically designed to measure active, reactive, and apparent power, as well as voltage and current in single-phase AC systems. It operates with both single-phase and bi-directional energy flow, making it suitable for a wide range of applications, including energy meters, power monitoring systems, and smart grid solutions. One of the key features of the CS5460A is its high accuracy in power and energy measurement. It achieves this with a delta-sigma analog-to-digital converter (ADC), providing precise measurements of current, voltage, and power parameters. The device features a high-resolution ADC with 16-bit measurement accuracy, allowing it to measure power consumption with very low error rates. Additionally, it can perform real-time calculations of active, reactive, and apparent power, as well as power factor, providing comprehensive data for energy monitoring and management. The IC integrates several key components, including the current and voltage sensing inputs, analog-to-digital converters, and digital processing for calculation and output. It communicates with a microcontroller or a s
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Interface Optimized for Shunt Sensor
- Ground-Referenced Signals with Single Supply
