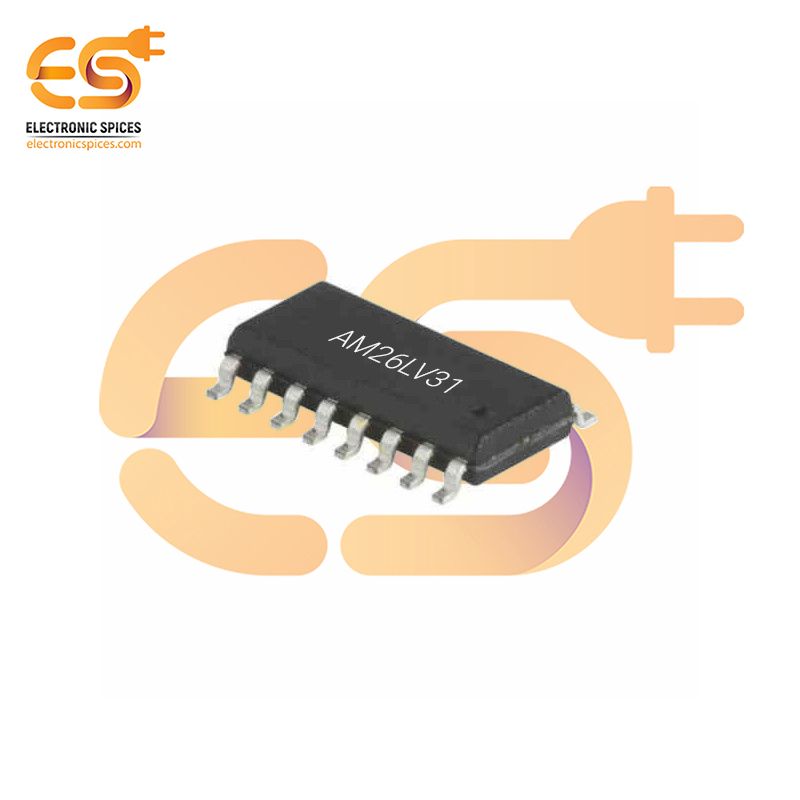

AM26LV31 Low-Voltage High-Speed Quadruple Differential Line Driver SMD IC
Specification:-
- Mounting: SMD
- Number of: 16 Pins
- Switching Rates up to 32 MHz
- Operate From a Single 3.3-V Supply
- Propagation Delay Time: 8 ns Typical
- Pulse Skew Time: 500 ps Typical
- High Output-Drive Current: ±30 mA
- Controlled Rise and Fall Times: 3 ns Typical
- Differential Output Voltage With 100-Ω
SKU: HO8521A
AM26LV31 Low-Voltage High-Speed Quadruple Differential Line Driver SMD IC
The AM26LV31 is a Low-Voltage High-Speed Quadruple Differential Line Driver SMD IC tailored for applications that require reliable high-speed data transmission over balanced transmission lines. This IC features four independent line drivers, enabling it to transmit differential signals effectively, making it highly suitable for communication standards such as RS-422 and RS-485. Operating at low voltage, typically 3.3V, the AM26LV31 is designed to integrate seamlessly with modern low-power systems while maintaining high data transfer rates. This combination of low voltage and high-speed performance ensures that it meets the requirements of contemporary digital and communication systems. The drivers are optimized for balanced transmission, significantly reducing electromagnetic interference (EMI) and ensuring signal integrity over longer distances. The IC’s robust output stage ensures strong signal drive capability, supporting both normal and power-saving modes to enhance flexibility in power management. Its built-in thermal shutdown and short-circuit protection further improve system safety and reliability, protecting against potential damage due to overheating or electrical faults.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD package
- Driver Output Short-Protection Circuit
- High Output Impedance in Power-Off Condition
