Specification:-
- Wide supply voltage range: 3.0V to 15V
- High noise immunity: 0.45 VDD (typ.)
- DC Supply Voltage: -0.5 VDC to +18 VDC
- Input Voltage: 0.5 VDC to VDD +0.5 VDC
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 700 mW
- Lead Temperature: 260°C
SKU: TB9102A

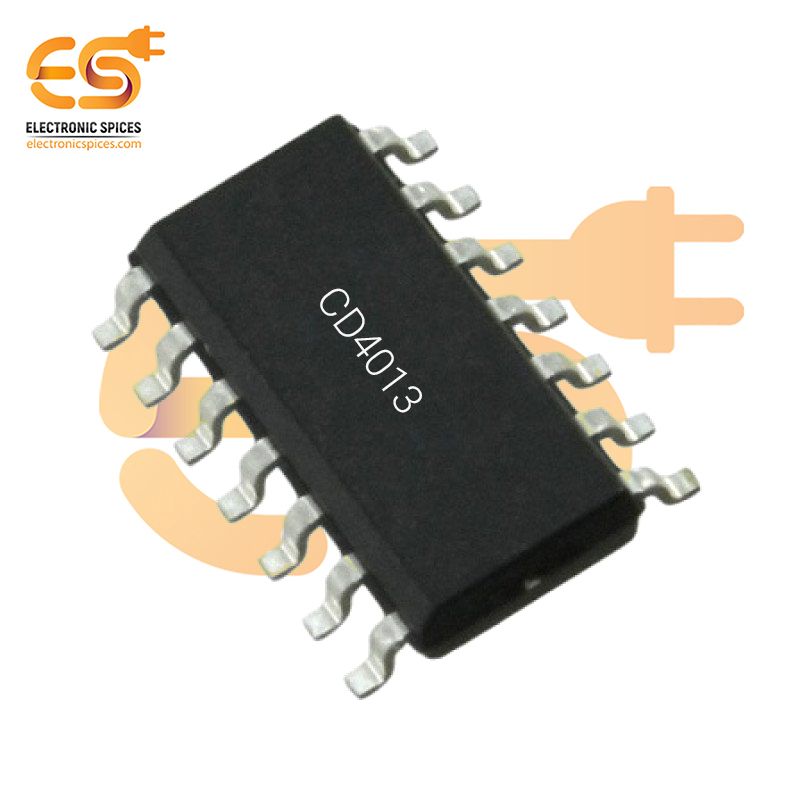

CD4013 Dual D Type Flip-Flop SMD IC
The CD4013 is a Dual D-Type Flip-Flop IC available in a surface-mount device (SMD) package, designed for use in digital circuits requiring bistable multivibrator functions. This IC contains two independent D-type flip-flops, each with set, reset, clock, and data inputs, as well as complementary outputs (Q and Q̅). It is widely used in data storage, signal synchronization, and frequency division applications. Each flip-flop captures the state of the data input (D) on the rising edge of the clock signal (CLK) and maintains this state at the Q output until the next clock cycle. The set and reset inputs allow asynchronous control of the output states, enabling additional flexibility. Complementary outputs ensure that both true and inverted signals are readily available. The CD4013 operates over a wide supply voltage range of 3V to 15V, making it compatible with both CMOS and TTL logic families. It offers low power consumption, high noise immunity, and stable operation across a broad temperature range due to its CMOS construction.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Low power TTL: compatibility with 74L and fan out of 2.
