Specification:-
- DC Supply Voltage: -0.5V to +18V
- Input Voltage: -0.5V to VDD +0.5V
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 700 mW
- Lead Temperature: 265°C
SKU: HT9102A

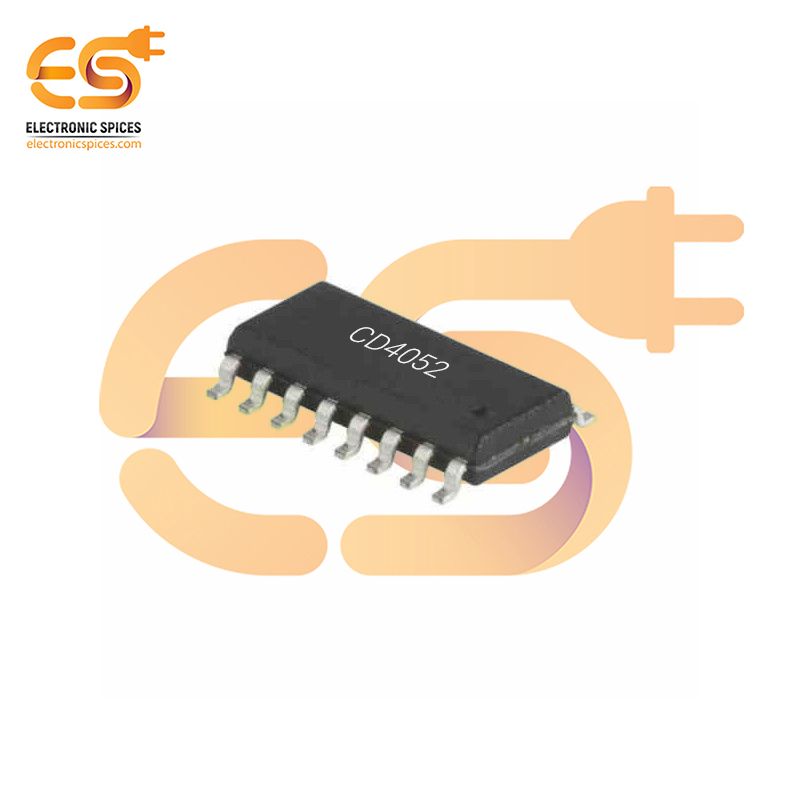

CD4052 Differential 4-Channel Multiplexer/Demultiplexer SMD IC
The CD4052 is a differential 4-channel multiplexer/demultiplexer IC, available in a surface-mount device (SMD) package, optimized for signal switching and routing in analog and digital circuits. This IC is widely used in applications requiring dual signal paths or differential signal routing, such as audio systems, sensor signal processing, and data acquisition. The CD4052 consists of two independent 4-channel multiplexers/demultiplexers, each capable of routing one of four input signals to a common output, or vice versa, depending on the control logic. Its differential configuration ensures compatibility with balanced signal systems, reducing noise and signal interference. Two control pins determine the active channel, and an enable input allows for the deactivation of all switches when needed. Operating over a wide supply voltage range of 3V to 15V, the IC supports analog signals up to the supply voltage, making it suitable for both low and high voltage applications. With low ON-resistance, minimal signal distortion, and high linearity, the CD4052 ensures high fidelity in signal routing. It also offers low power consumption and high noise immunity, leveraging CMOS technology.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Binary address decoding on chip
