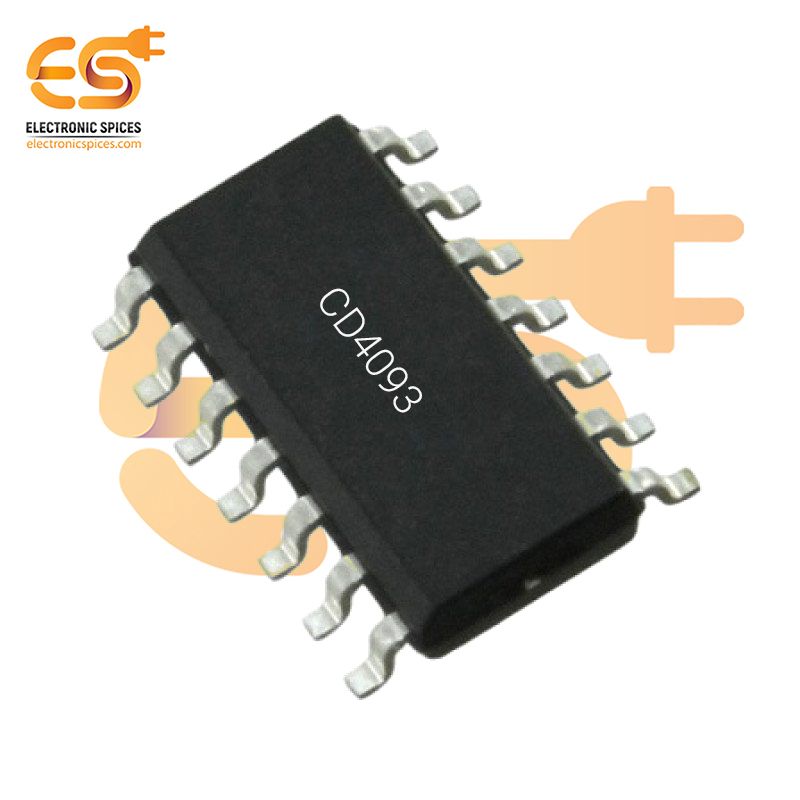

CD4093 Quad 2-Input NAND Schmitt Trigger SMD IC
Specification:-
- Wide supply voltage range: 3.0V to 15V
- Hysteresis voltage (any input) TA = 25°C
- DC Supply Voltage: -0.5 to +20 VDC
- Input Voltage: -0.5V to VDD + 0.5 VDC
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 700 mW
- Lead Temperature: 260°C
SKU: KM9102A
CD4093 Quad 2-Input NAND Schmitt Trigger SMD IC
The CD4093 is a Quad 2-Input NAND Schmitt Trigger IC available in a surface-mount device (SMD) package. This IC combines the logic functionality of a NAND gate with Schmitt-trigger action, making it highly versatile for signal processing in noisy environments. It is commonly used in applications such as waveform shaping, signal conditioning, pulse generation, and as oscillators in digital and analog circuits. Each of the four NAND gates in the CD4093 has Schmitt-trigger inputs that provide hysteresis. This feature ensures clean transitions between high and low logic states, even when the input signal has slow edges or is noisy. The IC operates over a wide supply voltage range of 3V to 15V, allowing it to integrate with various logic families and systems. Built with CMOS technology, the CD4093 offers low power consumption and high noise immunity. It has a typical propagation delay of 70 ns at 10V and can drive multiple TTL inputs, ensuring compatibility in mixed-signal environments.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Equal source and sink currents
- No limit on input rise and fall time
