BRIDGE RECTIFIER

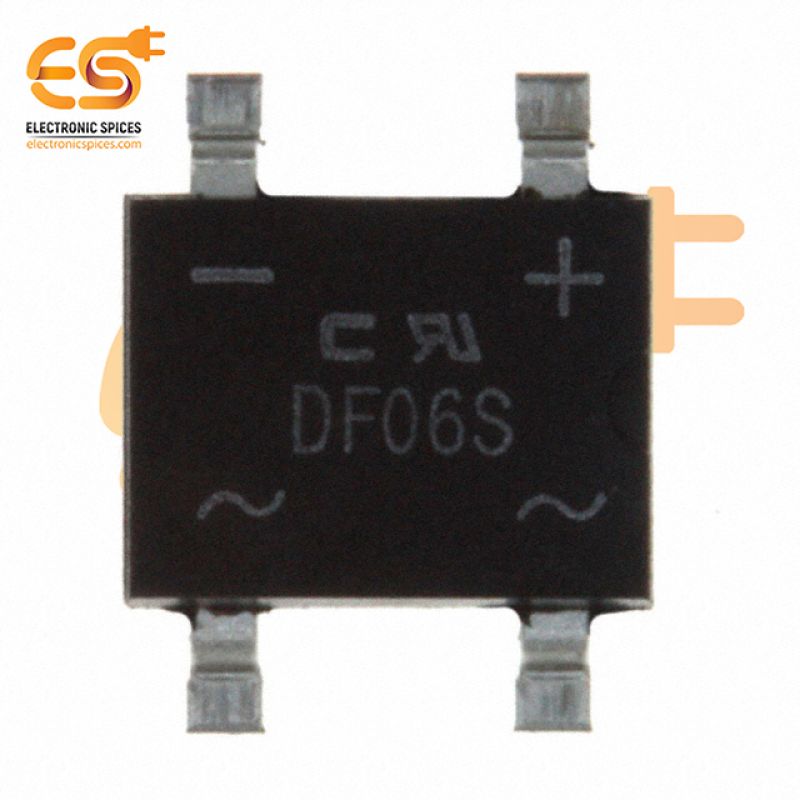

DF06S Single Phase 600V Surface Mount Bridge Rectifier

Brand: Diodes Incorporated

Specification:-

  • Package: SMD4 Gull Wing / DF-S
  • No. of Pins: 4 pins
  • No. of Phases: Single Phase
  • Transistor Mounting: Surface Mount
  • Average Forward Current: 1A
  • Forward Surge Current: 50A
  • Repetitive Peak Reverse Voltage: 600V
Available in Pack Of:

SKU: PX8470A

MRP Rs. 745.00
Rs. 500.00 (Incl. Tax)
Rs. 423.73 (+18% GST extra)
Rs. 423.73 / pack of 1 = Rs. 423.73 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied

DF06S Single Phase 600V Surface Mount Bridge Rectifier

The DF06S is a high-performance single-phase bridge rectifier designed for efficient AC-to-DC conversion in compact electronic systems. It is encased in a surface-mount package, making it ideal for applications where space-saving and automated assembly are priorities. The device is rated for a maximum reverse voltage of 600V and a forward current capacity of 1.5A, making it suitable for a wide range of power rectification tasks. With its low forward voltage drop and high surge current capability, the DF06S ensures efficient and reliable performance in demanding environments. It is well-suited for use in power supplies, motor drives, battery chargers, and LED lighting circuits. The device supports a peak forward surge current (Ifsm) of 50A, ensuring durability during transient conditions or startup surges. The DF06S bridge rectifier features four diodes arranged in a single-phase full-wave rectification configuration. This design allows it to convert alternating current (AC) to direct current (DC) efficiently, minimizing power loss. Its compact, thermally efficient surface-mount design ensures ease of integration into PCBs, making it a popular choice for consumer electronics, industrial controls, and automotive applications.

Features:-

  • High-Speed Performance
  • Low Power Consumption
  • Wide Operating Voltage Range
