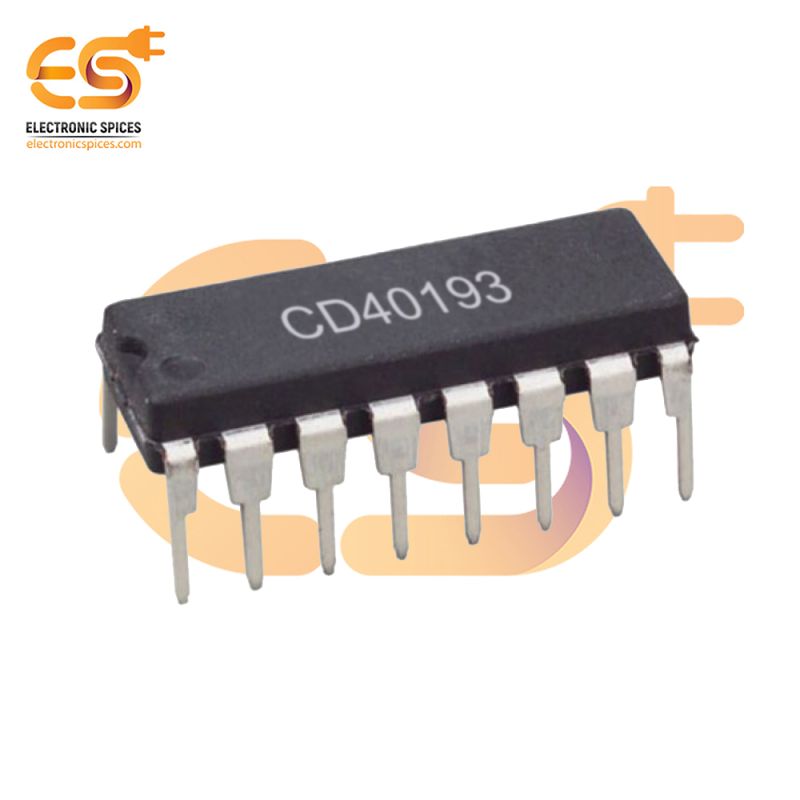

CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)
Specification:-
- Wide supply voltage range 3V to 15V
- High noise immunity 0.45 VDD (typ.)
- Low power TTL compatibility
- Carry and borrow outputs for easy expansion to N-bit by cascading
SKU: DA8543A
CD40193 8-bit Up/Down Binary Counter IC (DIP-16 Package)
The CD40193 is an 8-bit Up/Down Binary Counter IC, available in a DIP-16 package, designed for versatile counting applications in digital systems. This IC can count both up and down, making it suitable for applications such as event counting, digital clocks, frequency dividers, and programmable counters. The up/down functionality allows for bidirectional counting based on the state of the control input, providing flexibility for a variety of sequential tasks. The IC operates over a wide voltage range of 3V to 15V, making it compatible with CMOS and TTL logic systems. Built using CMOS technology, the CD40193 offers low power consumption, high noise immunity, and stable performance across typical operating conditions. Applications for the CD40193 include digital counters, frequency dividers, event counters, and programmable systems. The DIP-16 package ensures easy integration into through-hole circuit boards and breadboards, making it a convenient choice for both prototyping and production-level designs.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
