Specifications:-
- Package Type: TO247
- Power Consumption: 155 W
- Maximum Collector Current: 20 A
- Maximum Collector Emitter Voltage: 1200 V
- Mount Type: Through Hole
- DC Current Gain: 1000
SKU: PJ8541A

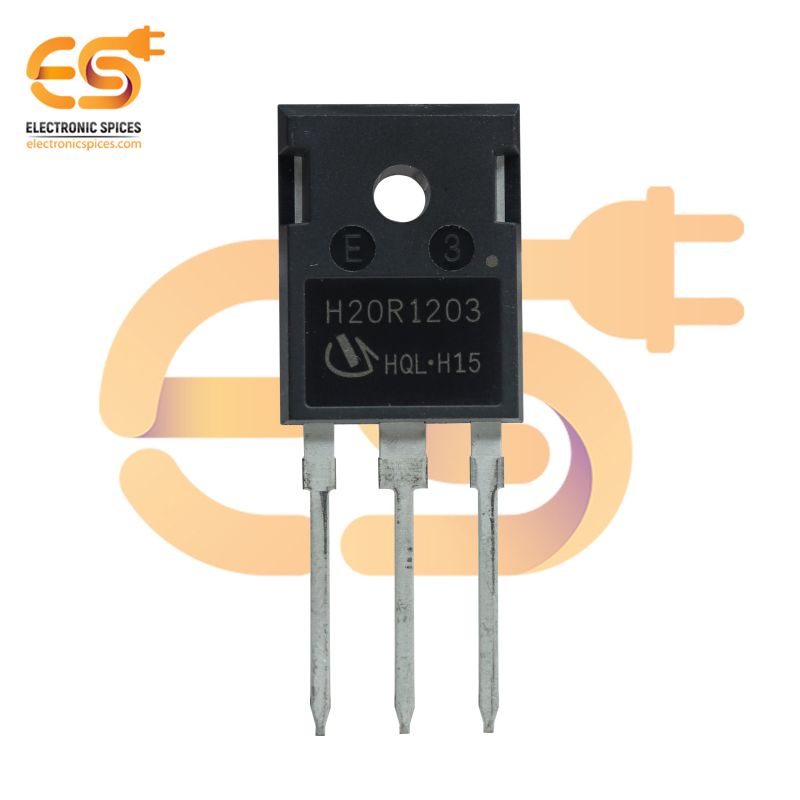

H20R1203 20A 1200V Transistor IGBT (TO-247 Package)
The H20R1203 is tailored to manage substantial voltage and current levels, featuring a voltage rating of 1200V and a current capacity of 20A. It's an excellent fit for applications requiring efficient power management control. This transistor leverages IGBT technology, which merges the advantages of MOSFETs (low electric losses) and bipolar transistors (rapid switching) to provide efficient and precise power switching. The TO-247 package is widely recognized for its robustness and exceptional thermal performance. It encompasses a metal tab that can be easily attached to a heatsink, ensuring efficient heat dissipation, even in high-power applications. Whether you're working on motor drives, inverters, welding equipment, or other power electronics projects, the H20R1203 can adapt to your power-switching requirements. This transistor is designed with overcurrent and overvoltage protection features, enhancing safety and protecting your circuits from sudden power surges.
Applications:-
- Inductive cooking
- Inverterized microwave ovens
- Resonant converters
- Soft switching applications
- +
-
-
