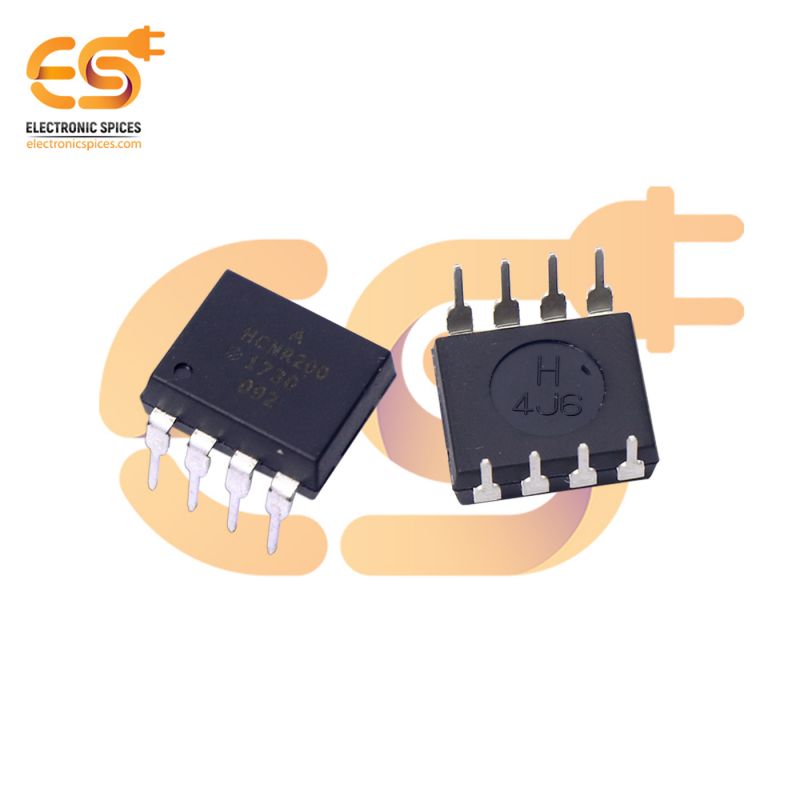

HCNR200 High linearity analog optocouplers DIP 8 pin IC
The HCNR200 is a high-linearity analog optocoupler consists of a high-performance LED that illuminates two closely matched photodiodes. The input photodiode can be use to monitor and therefore stabilize the light output of the LED. As a result, the non-linearity and drift characteristics of the LED can be virtually eliminated. The output photodiode produces a photocurrent that is linearly related to the light output of the LED. This can be use to isolate analog signals in a wide variety of applications that require good stability, linearity and bandwidth. This analog optocoupler is an excellent solution for many analog isolation problems.
- Low Nonlinearity: 0.01%
- K3 (IPD2/IPD1) Transfer Gain 15%
- Low gain temperature coefficient
- Also, Wide Bandwidth – DC to > 1 MHz
