Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- Operating Voltage: 2.5V - 5.5V
- OSC Frequency: 3.58 MHz
- Operating Temperature: -20 C to 75 C
- DTMF Tone Generation
SKU: LL8517A

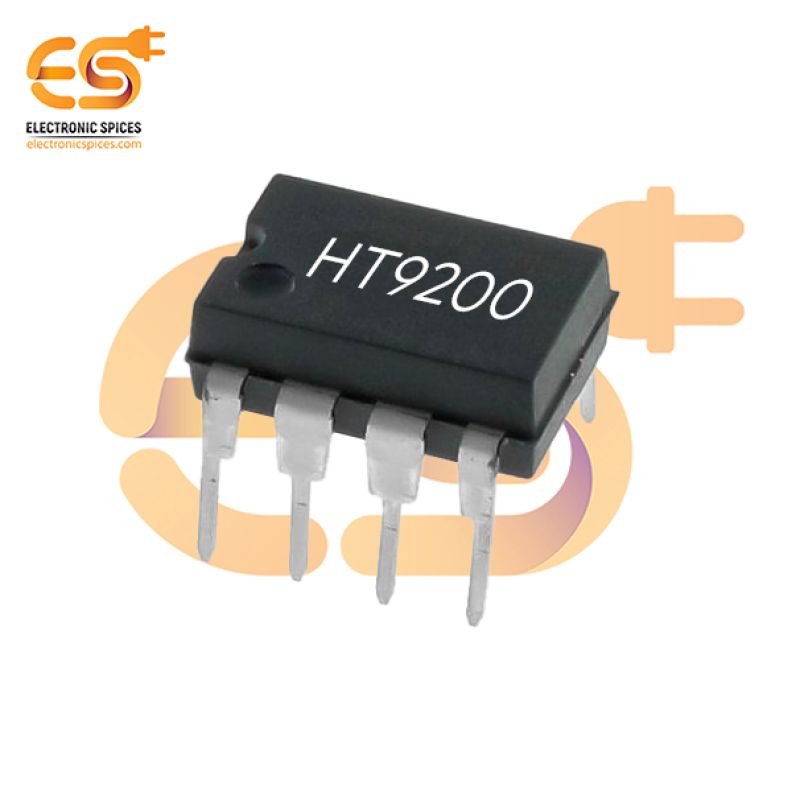

HT9200 DTMF Signaling Circuit Interface IC 8-SOIC
The HT9200 is a DTMF Signaling Circuit Interface IC designed to generate Dual Tone Multi-Frequency (DTMF) signals for telecommunication and control applications. Housed in a compact 8-SOIC (Small Outline Integrated Circuit) package, this IC is well-suited for use in modern communication systems where reliable and precise tone signaling is required. This versatile IC converts digital input codes into corresponding DTMF tones, which are essential for dialing and remote control operations. It is highly efficient, featuring low power consumption and compatibility with a wide range of applications. The HT9200 supports a straightforward interface, making it easy to integrate into various designs.
Features:-
- DTMF Tone Generation
- Wide Operating Voltage Range
- Low power consumption with high performance.
- 8-SOIC for easy integration in space-constrained designs
