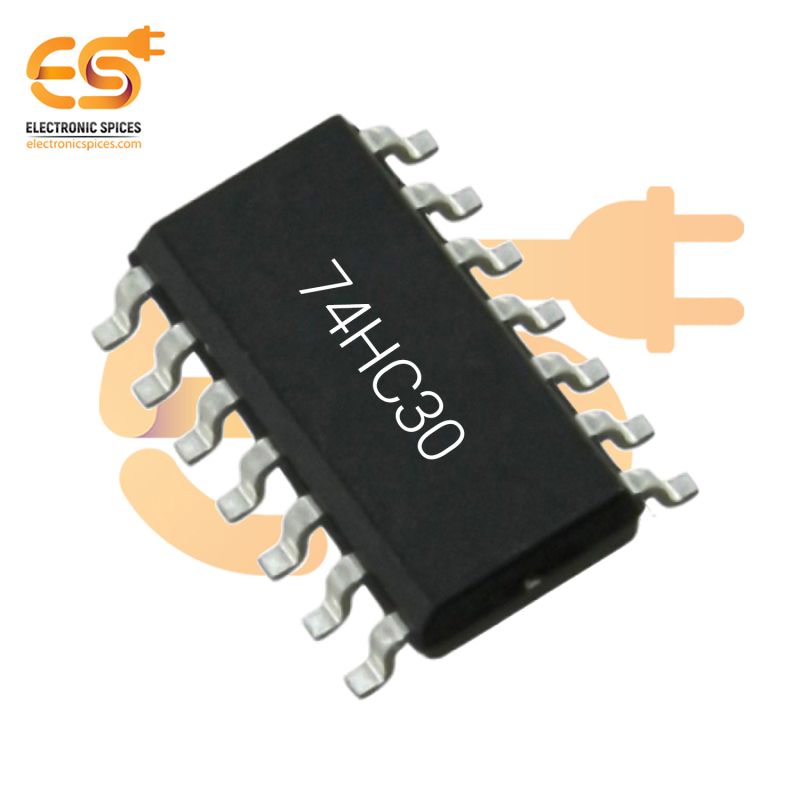

74HC30 8-input NAND Gate SMD IC
Specification:-
- Mounting: SMD
- Number of: 14 Pins
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- Operating Temperature: -65°C to 150°C
SKU: RW8501A
74HC30 8-input NAND Gate SMD IC
The 74HC30 is a Quad 2-Input OR Gate IC available in an SMD (Surface-Mount Device) package, designed for use in digital logic circuits. This IC features four independent OR gates, each with two inputs and one output, allowing it to perform logical addition operations. When any input of a gate is high (logic level '1'), the output is also high; the output is low (logic level '0') only when both inputs are low. Operating over a supply voltage range of 2V to 6V, the 74HC30 is suitable for both low and medium voltage applications. It is constructed using high-speed CMOS technology, providing the IC with low power dissipation and fast operation, making it well-suited for use in high-performance electronic projects. The IC is characterized by noise immunity and compatibility with various TTL logic levels, ensuring reliable operation in a wide range of environments. Typical applications include use in control systems, signal processing, and combination logic circuits, where logical OR operations are required for data routing, decision-making, or condition-checking functions.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
