Specification:-
- Packages: 8-Pin
- Power Supply Voltage: +18V
- Input Voltage Range: ±VS
- Storage Temperature Range: –40°C to +85°C
- Lead Temperature: +300°C
- Accurate Gain: ±0.025% max
- Operating Temperature Range: +260°C
SKU: RO8543A

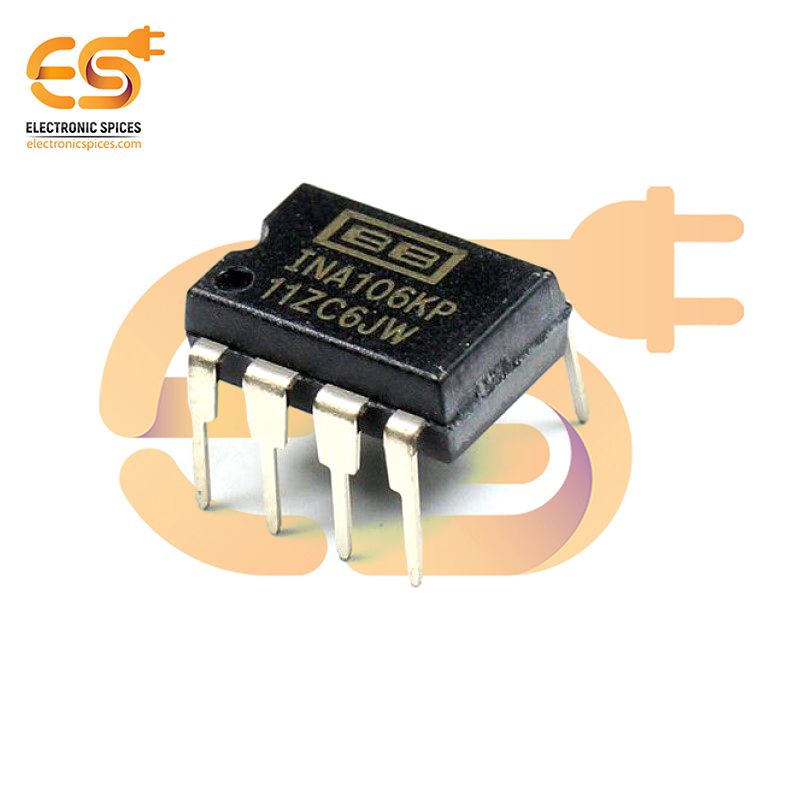

INA106 Difference Op-Amplifier IC (DIP-8 Package)
The INA106 is a difference amplifier IC, housed in a DIP-8 package, designed to provide precise differential signal amplification with built-in gain settings. This IC is commonly used in applications that require accurate signal subtraction and amplification, such as sensor signal conditioning, data acquisition, and audio signal processing. One of the key features of the INA106 is its laser-trimmed internal resistor network, which provides a precise fixed gain of 10, ensuring high accuracy and stability over time and temperature changes. This built-in configuration simplifies design efforts by eliminating the need for external precision resistors. The INA106 offers a high common-mode rejection ratio (CMRR), typically around 86 dB, which is essential for rejecting noise and common-mode signals in differential applications, enabling reliable operation even in electrically noisy environments. Operating over a supply voltage range from ±4.5V to ±18V, the INA106 can accommodate both single and dual-supply configurations, adding to its versatility. The IC features a low input offset voltage (typically 200 µV) and low drift, making it suitable for applications that require precise and consistent performance. The high input impedance ensures minimal loading on the signal source, preserving the integrity of low-level signals.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Input Offset
- Easy to Use
