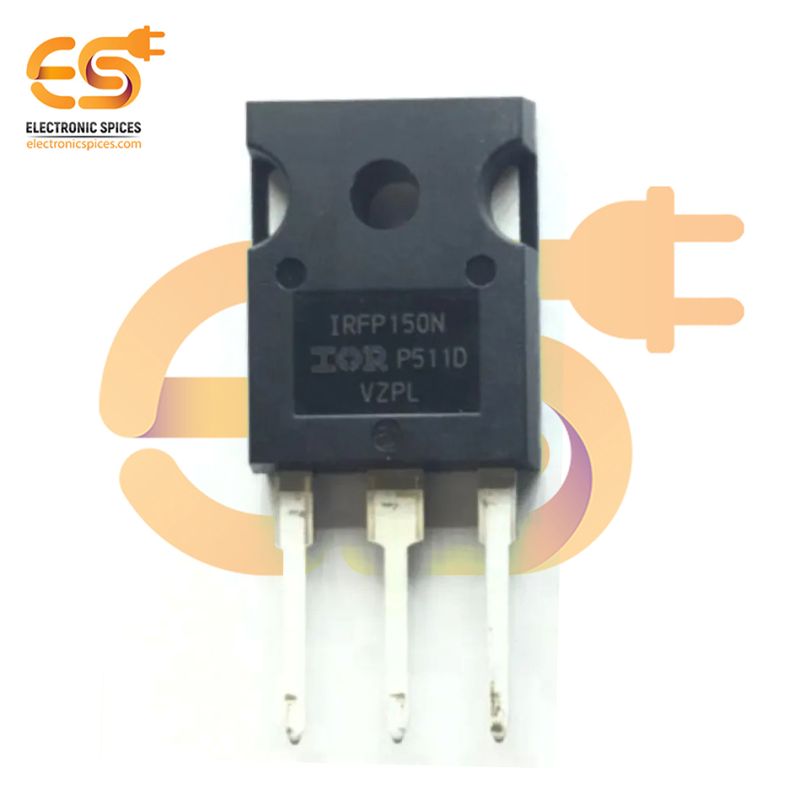

IRFP150N 100V 42A N-Channel Power MOSFET (TO-247 Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 100V
- Continuous Drain Current (Id): 42A
- Drain-Source Resistance (Rds On): 0.036 Ohms
- Gate-Source Voltage (Vgs): 20V
- Gate Charge (Qg): 110 nC
- Operating Temperature Range: -55 – 175°C
- Power Dissipation (Pd): 160W
SKU: EJ8542A
IRFP150N 100V 42A N-Channel Power MOSFET (TO-247 Package)
The IRFP150N is a 100V, 42A N-Channel Power MOSFET packaged in the robust TO-247 case, tailored for high-performance power applications. Its key attributes, such as low on-resistance, high current capability, and fast switching speed, make it ideal for use in DC-DC converters, motor control systems, uninterruptible power supplies (UPS), and high-power switching circuits. With a maximum drain-to-source voltage of 100V, the IRFP150N is well-suited for medium-voltage applications. Its continuous drain current rating of 42A ensures reliable operation in systems requiring high current handling. The low minimizes power losses during conduction, enhancing overall system efficiency. Additionally, the MOSFET’s fast switching capabilities contribute to reduced switching losses and improved performance in high-frequency applications. The TO-247 package provides excellent thermal management, ensuring effective heat dissipation for reliable performance under heavy loads. Its rugged construction is designed for use in demanding industrial and automotive environments.
Features:-
- Advanced process technology
- Dynamic dv/dt rating
- Fast switching
- Ease of paralleling
