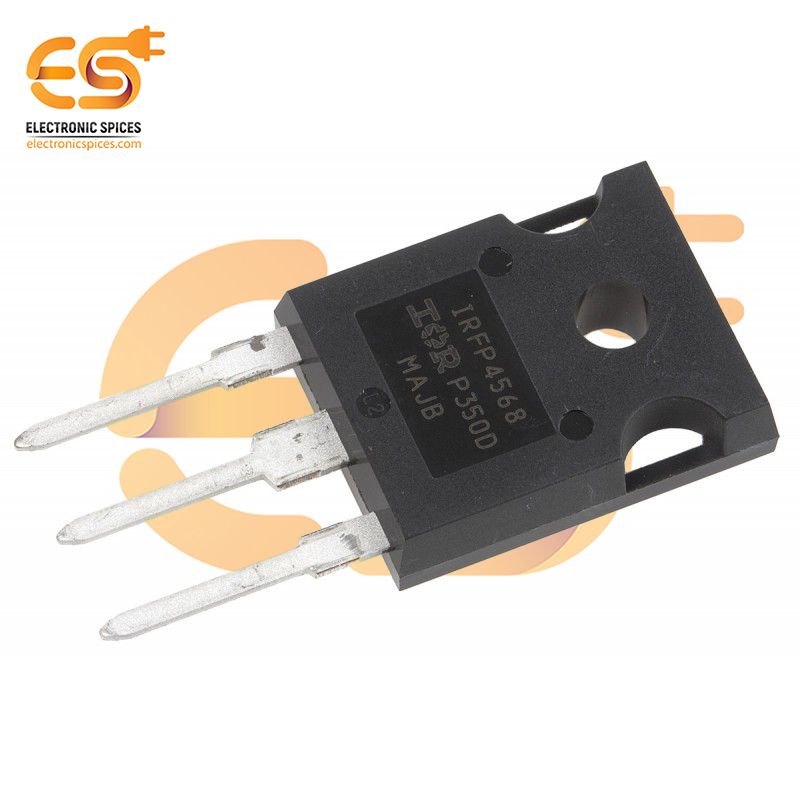

IRFP4568 150V 171A N-Channel Power MOSFET (TO-247 Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 150V
- Continuous Drain Current (Id): 171A
- Drain-Source Resistance (Rds On): 5.9mOhms
- Gate-Source Voltage (Vgs): 30V
- Gate Charge (Qg): 227 nC
- Operating Temperature Range: -55 – 175°C
- Power Dissipation (Pd): 517W
SKU: MX8542A
IRFP4568 150V 171A N-Channel Power MOSFET (TO-247 Package)
The IRFP4568 is a 150V, 171A N-Channel Power MOSFET housed in a TO-247 package, designed for high-current, medium-voltage power switching applications. With its 150V drain-to-source voltage rating, it is ideal for applications where moderate voltage handling is required, while its 171A drain current rating allows it to handle large amounts of current, making it particularly useful in high-power systems such as motor drives, power supplies, and industrial automation. This MOSFET features low on-resistance which contributes to reduced power losses and increased efficiency. The low on-resistance helps minimize heat generation during operation, ensuring that the IRFP4568 performs efficiently even in demanding, high-current applications. The TO-247 package offers good thermal dissipation and robust mechanical properties, allowing the MOSFET to operate effectively under high power loads. When paired with appropriate heat sinking, the IRFP4568 can be used in high-performance power circuits where efficiency and thermal management are critical factors.
Features:-
- Advanced Planar Technology
- Ultra Low On-Resistance
- Fast switching
- Ease of paralleling
