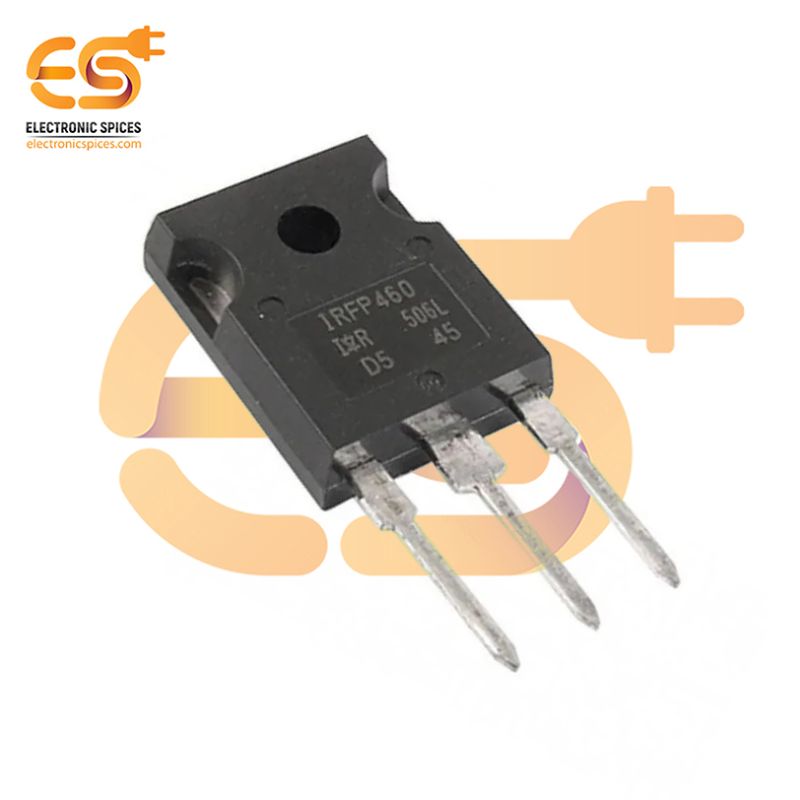

IRFP460 500V 20A N-Channel Power MOSFET (TO-247 Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 500V
- Continuous Drain Current (Id): 20A
- Drain-Source Resistance (Rds On): 0.024 Ohms
- Gate-Source Voltage (Vgs): 30V
- Gate Charge (Qg): 124 nC
- Operating Temperature Range: -55 – 175°C
- Power Dissipation (Pd): 280W
SKU: NR8542A
IRFP460 500V 20A N-Channel Power MOSFET (TO-247 Package)
The IRFP460 is a 500V 20A N-Channel Power MOSFET housed in a TO-247 package, making it a reliable choice for high-power switching and amplification applications. This device is widely used in industrial, automotive, and consumer electronics for its ability to handle high voltages and currents efficiently. This MOSFET features a low on-resistance ensuring minimal conduction losses, and a high-speed switching capability that supports improved efficiency in high-frequency applications. With its robust avalanche energy rating, the IRFP460 is designed to withstand voltage spikes and transient conditions, adding reliability to its operation. The device supports a maximum drain-source voltage of 500V and a continuous drain current of 20A, making it suitable for applications like power supplies, inverters, motor drives, and high-power DC-DC converters. Its rugged design includes a built-in fast-recovery body diode, enhancing its performance in inductive load switching.
Features:-
- Dynamic dV/dt Rating
- Fast switching
- Advanced process technology
- Ultra Low On-Resistance
- Fully Avalanche Rated
