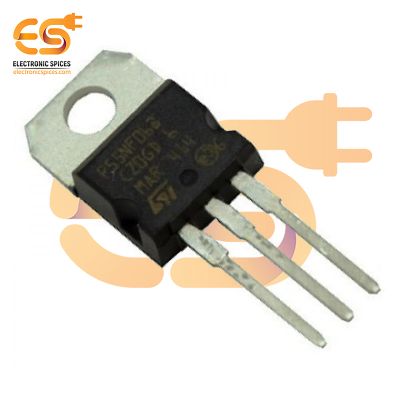

P55NF06 60V 50A N-Channel Power MOSFET (TO-220 Package)
Specification:-
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Drain-Source Breakdown Voltage (Vds): 60V
- Continuous Drain Current (Id): 50A
- Drain-Source Resistance (Rds On): 0.018 Ohms
- Gate-Source Voltage (Vgs): 20V
- Gate Charge (Qg): 60 nC
- Operating Temperature Range: -55 – 175°C
- Power Dissipation (Pd): 110W
SKU: CG8542A
P55NF06 60V 50A N-Channel Power MOSFET (TO-220 Package)
The P55NF06 is a 60V, 50A N-Channel Power MOSFET packaged in a TO-220 package. This device is designed for high-performance power switching applications, offering a combination of low on-resistance, fast switching speeds, and high current handling capabilities, making it ideal for applications like motor control, power regulation, DC-DC converters, and switching power supplies. With a drain-to-source voltage rating of 60V, the P55NF06 is capable of operating in circuits where moderate voltage levels are present, while its continuous drain currentof 50A ensures that it can handle high current loads, providing sufficient power for demanding applications. The low on-resistance of this MOSFET significantly reduces conduction losses, contributing to higher efficiency and cooler operation, which is crucial in power-sensitive systems. The TO-220 package offers efficient heat dissipation, enabling the P55NF06 to operate effectively under high-current conditions without excessive heating. This package type also provides ease of mounting to heatsinks, allowing for further cooling when necessary.
Features:-
- Low input capacitance and gate charge
- Low gate input resistance
- Ease of paralleling
- Simple Drive Requirements
