Specification:-
- Number of channels: 4
- Iq per channel: 1.4 (mA)
- Rail-to-rail In to V+
- Low Input Bias Current: 30 pA Typical
- Low Input Offset Current: 5 pA Typical
- Low Power Consumption: 1.4 mA/ch Typical
SKU: MU8543A

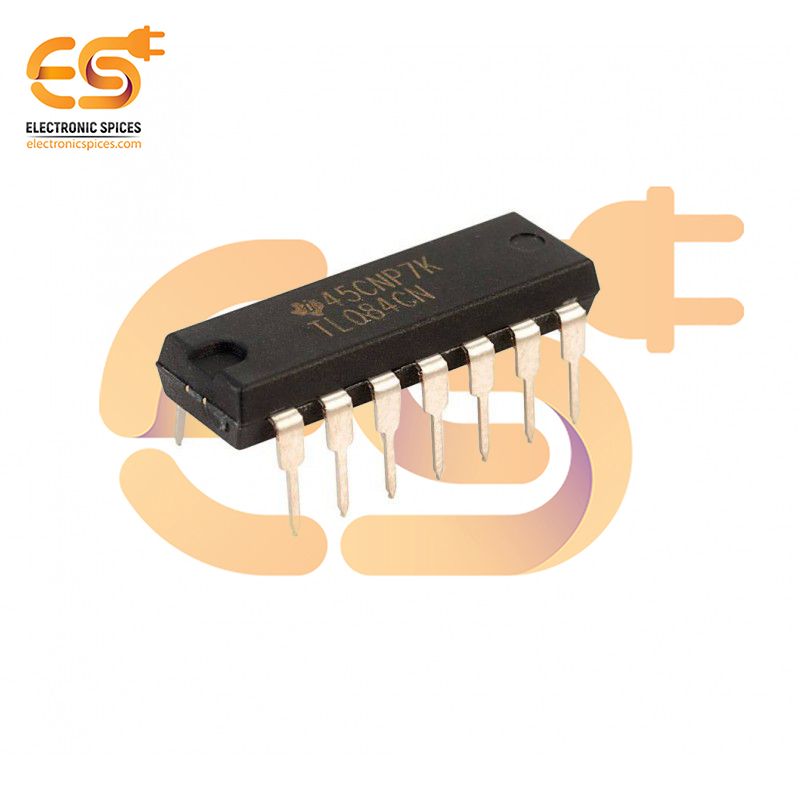

TL084 Quad JFET Input Operational Amplifier IC (DIP-14 Package)
The TL084 is a high-performance quad operational amplifier IC that features JFET (junction field-effect transistor) input stages, ensuring high input impedance and low input bias current. Packaged in a DIP-14 (dual in-line package), the TL084 integrates four independent op-amps within a single IC, making it a space-efficient solution for complex circuit designs. This IC is particularly valued for its low power consumption and high slew rate of approximately 13 V/µs, which allows it to handle rapid signal changes effectively. The TL084 has a wide bandwidth of 3 MHz, providing accurate amplification and reliable performance in a variety of audio, instrumentation, and analog processing applications. The JFET input structure contributes to an exceptionally high input impedance, typically in the range of 10^12 ohms, minimizing the loading effect on preceding circuits and making it ideal for use with high-impedance sources. Operating on a dual supply voltage ranging from ±3V to ±18V, the TL084 offers flexibility in different circuit configurations. The op-amps also provide a low input offset voltage, ensuring accurate signal processing and reducing the need for external calibration.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Common-Mode Input Voltage Range
