74 SERIES SMD IC
Showing 1–12 of 60 results
-
![74HC154 4-Line to 16-Line Decoder/Demultiplexer SMD IC]()
74HC154 4-Line to 16-Line Decoder/Demultiplexer SMD IC
Rs. 109.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- DC Output Current, per pin: ± 25mA
- Operating Voltage Range: 2.0 to 6.0 V
- Low input current: 1 µA maximum
- Typical propagation delay: 21 ns
-
![74HC393 Dual 4-bit Binary Ripple Counter SMD IC]()

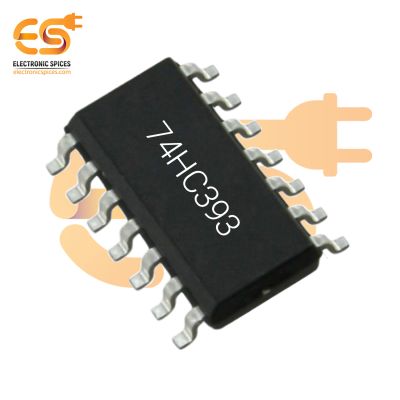

74HC393 Dual 4-bit Binary Ripple Counter SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- Supply Current: ± 50 mA
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- Operating supply voltage range: 2–6V
- Operating Temperature: 65°C to 150°C
-
![74HC02 Quad 2-Input NOR Gate SMD IC]()
74HC02 Quad 2-Input NOR Gate SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Number of: 14 Pins
- Voltage Rating: 4.75 to 5.25V
- Storage Temperature Range: 0°C to + 70°C
- Large Operating Voltage Range
- Four Independent NOR Gates
- High-Speed CMOS Type
-
![74HC164 8-Bit Serial In/Parallel out Shift Register SMD IC]()
74HC164 8-Bit Serial In/Parallel out Shift Register SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply voltage range: 2V to 6V
- Supply Voltage: − 0.5 to + 7.0V
- Typical propagation delay: 19 ns
- Typical operating frequency: 50 MHz
- Temperature Range: -55°C to 150°C
-
![74HC273 Octal D-Type Flip-Flop with Reset SMD IC]()

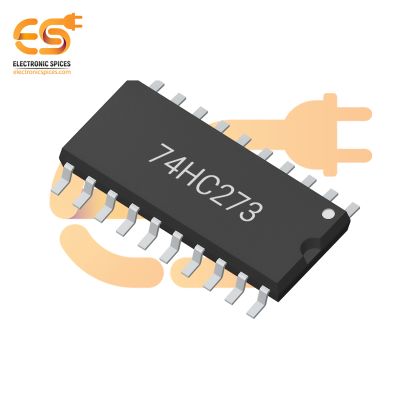

74HC273 Octal D-Type Flip-Flop with Reset SMD IC
Rs. 49.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- Operating Temperature: -65°C to 150°C
- Typical propagation delay: 18 ns
-
![74LS10 Triple 3-Input NAND Gates SMD IC]()

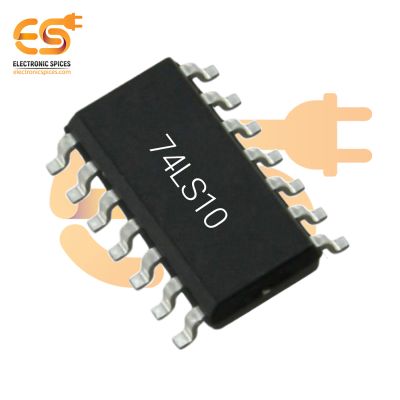

74LS10 Triple 3-Input NAND Gates SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Supply Voltage range: 4.5 to 5.5V
- Output Current (High): -0.4mA
- Output Current (Low): 8mA
- Operating Temperature: 0°C to 70°C
-
![74HC00 Quad 2 Input NAND Gate SMD IC]()
74HC00 Quad 2 Input NAND Gate SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Number of: 14 Pins
- Voltage Rating: 4.75 to 5.25V
- Storage Temperature Range: 0°C to + 70°C
- Large Operating Voltage Range
- Four Independent NOR Gates
- High-Speed Low Power CMOS Type
-
![74HC151 8 – Input Multiplexer SMD IC]()

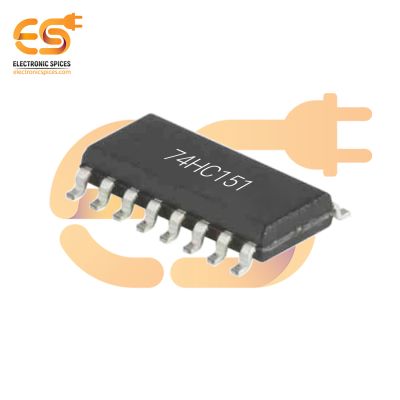

74HC151 8 – Input Multiplexer SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- DC Output Current, per pin: ± 25mA
- Operating Voltage Range: 2.0 to 6.0 V
- Low input current: 1 µA maximum
- Typical propagation delay: 26 ns
-
![74LS90 Decade Counter SMD IC]()
74LS90 Decade Counter SMD IC
Rs. 59.00Specification:-
- Supply Voltage: 4.5 to 5.5V
- Output Current: -0.4 to 8mA
- Low Power Consumption : Typically 45 mW
- High Count Rates : Typically 42 MHz
- Temperature Range: -55°C to 125°C
-
![74HC109 Dual J-K Positive-Edge-Triggered Flip-Flops SMD IC]()
74HC109 Dual J-K Positive-Edge-Triggered Flip-Flops SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- Input Clamping Current: ±20 mA
- Output Clamping Current: ±20 mA
- J and K inputs for easy D-type flip-flop
- Storage Temperature Range : −65°C to + 150°C
-
![74HC148 8 to 3-Line Priority Encoder SMD IC]()
74HC148 8 to 3-Line Priority Encoder SMD IC
Rs. 59.00Specification:-
- Mounting: SMD
- Supply Voltage: − 0.5 to + 7.0V
- Operating Voltage Range of 2 V to 6 V
- Typical tpd = 16 ns
- ±4-mA Output Drive at 5 V
- Low Input Current of 1 µA Max
- Low Power Consumption, 80-µA Max ICC
- Outputs Can Drive Up To 10 LSTTL Loads
-
![74HC147 Decimal to BCD Priority Encoder SMD IC]()

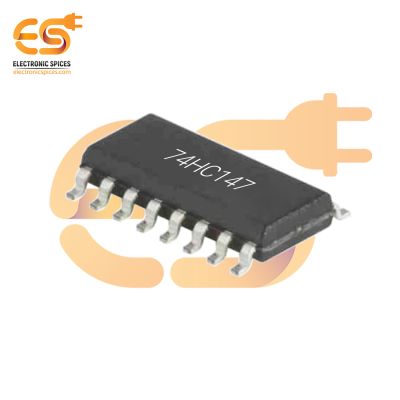

74HC147 Decimal to BCD Priority Encoder SMD IC
Rs. 69.00Specification:-
- Mounting: SMD
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Diode Current: ± 20 mA
- DC Output Diode Current: ± 20 mA
- Typical propagation delay: 13 ns
- Storage Temperature Range : −65°C to + 150°C
