74 SERIES SMD IC
Showing 1–12 of 60 results
-
![74HC393 Dual 4-bit Binary Ripple Counter SMD IC]()
74HC393 Dual 4-bit Binary Ripple Counter SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- Supply Current: ± 50 mA
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- Operating supply voltage range: 2–6V
- Operating Temperature: 65°C to 150°C
-
![74HC373 Octal D-Type Latch 3-State Outputs IC SMD IC]()
74HC373 Octal D-Type Latch 3-State Outputs IC SMD IC
Rs. 29.00Specification:-
- Low input current: 1 µA
- Power Dissipation: 500 mW
- Typical propagation delay: 18 ns
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: − 1.5 to VCC + 1.5V
- DC Output Voltage: − 0.5 to VCC + 0.5V
- Temperature Range: − 65°C to + 150°C
-
![74HC147 Decimal to BCD Priority Encoder SMD IC]()
74HC147 Decimal to BCD Priority Encoder SMD IC
Rs. 69.00Specification:-
- Mounting: SMD
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Diode Current: ± 20 mA
- DC Output Diode Current: ± 20 mA
- Typical propagation delay: 13 ns
- Storage Temperature Range : −65°C to + 150°C
-
![74LS193 Binary Up/Down Counter with Clear SMD IC]()
74LS193 Binary Up/Down Counter with Clear SMD IC
Rs. 46.00Specification:-
- Mounting: SMD
- Frequency: 40 MHz
- Supply Voltage range: 4.5 to 5.5V
- Output Current (High): -0.4mA
- Output Current (Low): 8mA
- Operating Temperature: -55°C to 125°C
-
![74HC00 Quad 2 Input NAND Gate SMD IC]()
74HC00 Quad 2 Input NAND Gate SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Number of: 14 Pins
- Voltage Rating: 4.75 to 5.25V
- Storage Temperature Range: 0°C to + 70°C
- Large Operating Voltage Range
- Four Independent NOR Gates
- High-Speed Low Power CMOS Type
-
![74HC109 Dual J-K Positive-Edge-Triggered Flip-Flops SMD IC]()
74HC109 Dual J-K Positive-Edge-Triggered Flip-Flops SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Supply Voltage: − 0.5 to + 7.0V
- Input Clamping Current: ±20 mA
- Output Clamping Current: ±20 mA
- J and K inputs for easy D-type flip-flop
- Storage Temperature Range : −65°C to + 150°C
-
![74LS90 Decade Counter SMD IC]()
74LS90 Decade Counter SMD IC
Rs. 59.00Specification:-
- Supply Voltage: 4.5 to 5.5V
- Output Current: -0.4 to 8mA
- Low Power Consumption : Typically 45 mW
- High Count Rates : Typically 42 MHz
- Temperature Range: -55°C to 125°C
-
![74LS240 Octal Buffers & Line Drivers SMD IC]()
74LS240 Octal Buffers & Line Drivers SMD IC
Rs. 39.00Specification:-
- Mounting: SMD
- Input levels: CMOS level
- Supply Voltage range: 4.5 to 5.5V
- High-level Output Current: 12mA
- Operating Temperature: -55°C to 125°C
-
![74HC86 Quad 2-Input EXOR Gate SMD IC]()
74HC86 Quad 2-Input EXOR Gate SMD IC
Rs. 29.00Specification:-
- Type: Quad
- Number of: 14 Pins
- Mounting: SMD
- Material: Plastic
- Supply Voltage: 2 to 6V
- Low Noise: VOLP = 0.8 V (Max)
-
![74LS11 Triple 3-Input AND Gate SMD IC]()
74LS11 Triple 3-Input AND Gate SMD IC
Rs. 29.00Specification:-
- Mounting: SMD
- Supply Voltage range: 4.5 to 5.5V
- Output Current (High): -0.4mA
- Output Current (Low): 8mA
- Operating Temperature: -55°C to 125°C
-
![74LS13 Schmitt Trigger SMD IC]()
74LS13 Schmitt Trigger SMD IC
Rs. 49.00Specification:-
- Mounting: SMD
- Supply Voltage range: 4.5 to 5.5V
- Output Current (High): -0.4mA
- Output Current (Low): 8mA
- Operating Temperature: -55°C to 125°C
-

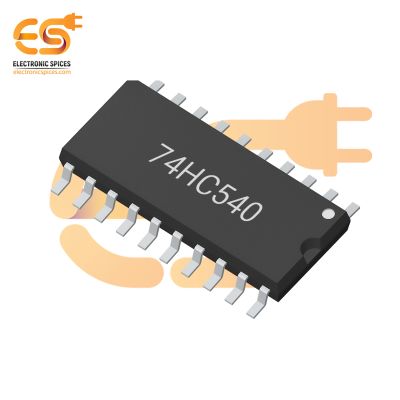

![74HC540 Octal 3-state Inverting Buffer IC SMD IC]()
74HC540 Octal 3-state Inverting Buffer IC SMD IC
Rs. 39.00Specification:-
- Mounting: SMD
- Power Dissipation: 500 mW
- Operating Voltage Range: 2 V – 6 V
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Voltage: –0.5 to VCC + 0.5
- DC Output Voltage: −0.5 ≤ VO ≤ VCC + 0.5
- Operating Temperature: 65°C to 150°C
