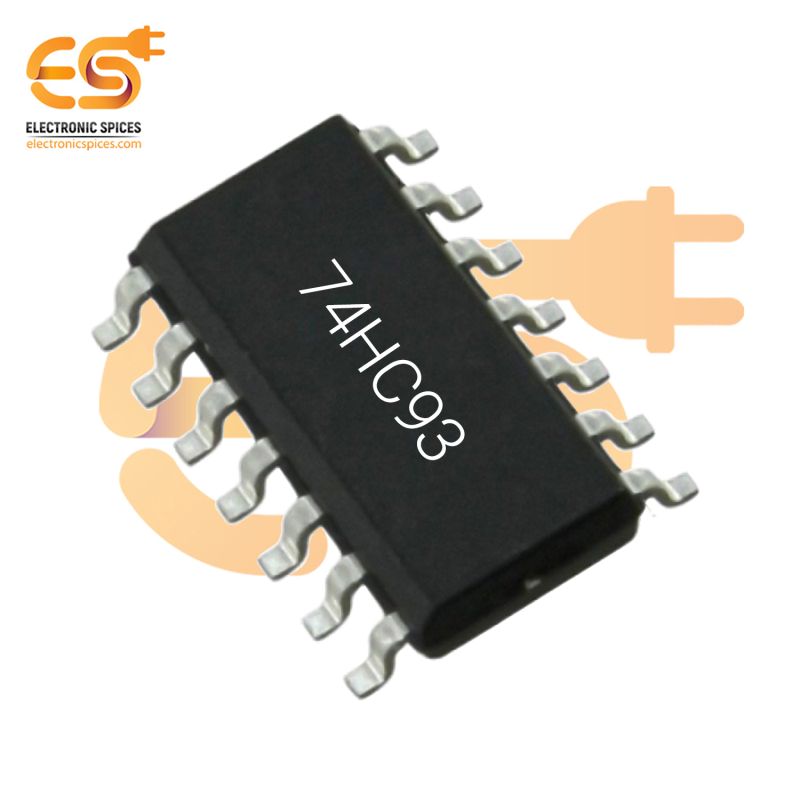

74HC93 4-Bit Binary Ripple Counter SMD IC
Specification:-
- Mounting: SMD
- Supply Voltage: − 0.5 to + 7.0V
- DC Input Diode Current: ±20
- DC Output Diode Current: ±20mA
- DC VCC or GND Current, per pin: 50mA
- Temperature Range: -55°C to 150°C
SKU: JX8501A
74HC93 4-Bit Binary Ripple Counter SMD IC
The 74HC93 4-Bit Binary Ripple Counter SMD IC is a high-speed, CMOS logic component designed to perform binary counting operations with precision and reliability. This IC consists of a 4-bit binary ripple counter, making it ideal for counting applications in a wide range of electronic systems. Its small SMD (surface-mount device) format allows it to be used in compact, space-constrained designs, suitable for high-density printed circuit boards (PCBs) in modern electronics. The 74HC93 contains four flip-flops configured as a binary ripple counter, meaning it counts in binary from 0 to 15 (a full 4-bit range). It is a synchronous counter, where two sections — a divide-by-two and a divide-by-eight counter — work together to enable counting from 0 to 15. By connecting pins in various configurations, users can also create a divide-by-16 counter or other modular counting setups as needed. The IC operates on a wide voltage range, typically between 2V to 6V, allowing compatibility with different system power requirements and making it versatile across various applications. It is optimized for high speed, making it suitable for applications requiring fast counting or timing functions.
Features:-
- High-Speed Operation
- Wide Operating Voltage Range
- Low Power Consumption
- Compact SMD Package
- 4-Bit Binary Ripple Counter
