INTERFACE IC
Showing 1–12 of 23 results
-
MAX202E RS-232 Interface SMD IC
Rs. 59.00Specification:-
- Mounting Type: Surface Mount
- Integrated High ±15kV HBM ESD Protection
- Integrated Charge Pump Circuitry
- Eliminates the Need for a Bipolar ±12V Supply
- Enables Single Supply Operation From +5V Supply
- 24-pin SSOP Package Saves up to 40% Versus SO
-

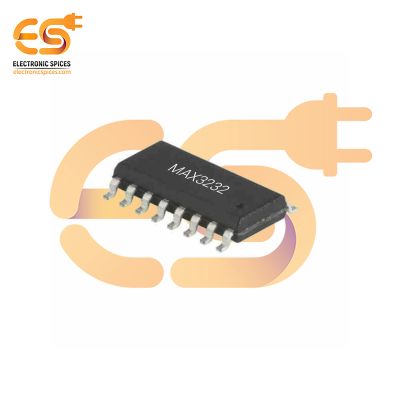

MAX3232 RS-232 Transceivers SMD IC
Rs. 69.00Specification:-
- Mounting Type: Surface Mount
- Operating Voltage: 3V to 5.5V
- Input Levels: ±30-V
- Operating current: 8mA
- Can work with 5V and 3.3V logic devices
- TTL/CMOS to RS232 Converter IC
-
MC14490 Hex Contact Bounce Eliminator IC (DIP-16 Package)
Rs. 359.00Specification:-
- DC Supply Voltage Range: -0.5 to +18.0
- Input or Output Voltage Range: -0.5 to VDD + 0.5
- Input Current (DC or Transient) per Pin: ±10
- Power Dissipation, per Package: 500
- Ambient Temperature: -55 to 125 °C
- Storage Temperature Range: -65 to +150 °C
-

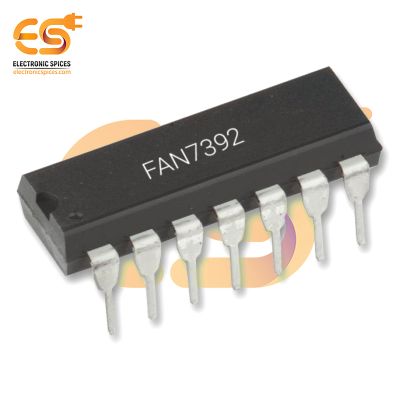

FAN7392 High and Low-Side Gate-Drive IC (DIP-14 Package)
Rs. 89.00Specification:-
- High-Side Floating Supply Voltage: -0.3 to 625 V
- High-Side Floating Offset Voltage: VB-25.0 to VB+0.3 V
- High-Side Floating Output Voltage: VS-0.3 to VB+0.3 V
- Low-Side Supply Voltage -0.3 to 25V
- Low-Side Floating Output Voltage: -0.3 to VCC+0.3 V
- Logic Supply Voltage: -0.3 to VSS+25.0 V
- Logic Supply Offset Voltage: VCC-25.0 to VCC+0.3 V
- Logic Input Voltage (HIN, LIN and SD)VINVSS: -0.3 to VDD+0.3 V
-
FT245RL USB To Parallel FIFO Interface IC (SMD SSOP-28 Package)
Rs. 829.00Specification:-
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- +3.3V (using external oscillator) to +5.25V
- Storage Temperature: -65 to 150 °C
- Ambient Temperature (Power Applied): -40 to 85 °C
- Integrated +3.3V level converter for USB I/O.
-
MC1496 Balanced Modulator/Demodulator IC (DIP-14 Package)
Rs. 119.00Specification:-
- Applied Voltage: 30 V
- Differential Input Signal: 5 V
- Maximum Bias Current: 10 mA
- Operating Ambient Temperature: 0 to 70 °C
- Storage Temperature Range: -65 to +150 °C
-
FT232RL USB to Serial UART Interface SMD IC SSOP-28 Package)
Rs. 469.00Specification:-
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- Storage Temperature: -65 to 150 °C
- Ambient Temperature (Power Applied): -40 to 85 °C
-
MCP2515 CAN Controller Interface IC (DIP-18 Package)
Rs. 269.00Specification:-
- Wide operating voltage: 2.7V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temp. with power applied: 65°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- Operating temperature range: -40°C to +125°C
-
MCP2551 CAN Transceiver IC (DIP-8 Package)
Rs. 229.00Specification:-
- DC Voltage at TXD, RXD. VREF and Vs: -0.3V to VDD +0.3V
- DC Voltage at CANH, CANL: -42V to 42V
- Transient Voltage on Pins 6 and 7: -250V to 250V
- Storage temperature: -55°C to +150°C
- Operating Temperature: -40°C to +125°C
- Virtual Junction Temperature: -40°C to +150°C
-
MCP2510 CAN Controller Interface IC (DIP-18 Package)
Rs. 189.00Specification:-
- Wide operating voltage: 3.3V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temp. with power applied: 65°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD protection on all pins: ≥ 4 kV
- High Speed SPI Interface (5 MHz at 4.5V I temp)
-
L297 Stepper Motor Controller IC DIP-20 Package
Rs. 129.00Specification:-
- Supply voltage: 10 V
- Vi Input signals: 7 V
- Ptot Total power dissipation (Tamb = 70°C): 1 W
- Storage and junction temperature: -40 to 150 °C
- Clockwise/anticlockwise direction
- Switch mode load current regulation
