INTERFACE IC
Showing 1–12 of 39 results
.jpg)
.jpg)
.jpg)
-
![FAN7392 High and Low-Side Gate-Drive IC (DIP-14 Package)]()
FAN7392 High and Low-Side Gate-Drive IC (DIP-14 Package)
Rs. 89.00Specification:-
- High-Side Floating Supply Voltage: -0.3 to 625 V
- High-Side Floating Offset Voltage: VB-25.0 to VB+0.3 V
- High-Side Floating Output Voltage: VS-0.3 to VB+0.3 V
- Low-Side Supply Voltage -0.3 to 25V
- Low-Side Floating Output Voltage: -0.3 to VCC+0.3 V
- Logic Supply Voltage: -0.3 to VSS+25.0 V
- Logic Supply Offset Voltage: VCC-25.0 to VCC+0.3 V
- Logic Input Voltage (HIN, LIN and SD)VINVSS: -0.3 to VDD+0.3 V
-
![FT232RL USB to Serial UART Interface SMD IC SSOP-28 Package)]()
FT232RL USB to Serial UART Interface SMD IC SSOP-28 Package)
Rs. 469.00Specification:-
- VCC Supply Voltage: -0.5 to +6.00 V
- DC Input Voltage – USBDP and USBDM: -0.5 to +3.8 V
- DC Output Current – Outputs: 24 mA
- Storage Temperature: -65 to 150 °C
- Ambient Temperature (Power Applied): -40 to 85 °C
-
![PL2303HX Full Duplex RS-485 Transceiver SMD IC]()
PL2303HX Full Duplex RS-485 Transceiver SMD IC
Rs. 219.00Specification:-
- Two general-purpose I/O (GPIO) pins.
- Supports RS232-like Serial Interface.
- Two general-purpose I/O (GPIO) pins.
- Configurable 512-byte bi-directional data buffer.
- On-Chip USB 1.1 transceiver, 5V ~ 3.3V regulator, and 12 MHz crystal oscillator.
-

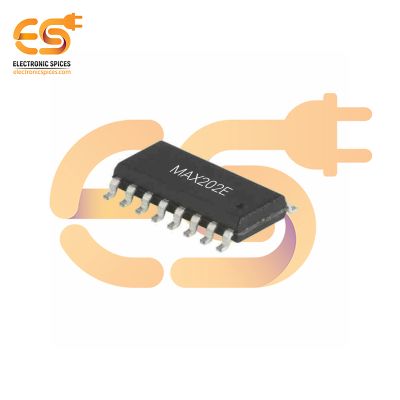

![MAX202E RS-232 Interface SMD IC]()
MAX202E RS-232 Interface SMD IC
Rs. 59.00Specification:-
- Mounting Type: Surface Mount
- Integrated High ±15kV HBM ESD Protection
- Integrated Charge Pump Circuitry
- Eliminates the Need for a Bipolar ±12V Supply
- Enables Single Supply Operation From +5V Supply
- 24-pin SSOP Package Saves up to 40% Versus SO
-

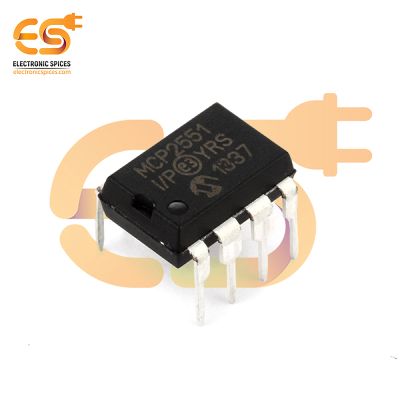

![MCP2551 CAN Transceiver IC (DIP-8 Package)]()
MCP2551 CAN Transceiver IC (DIP-8 Package)
Rs. 229.00Specification:-
- DC Voltage at TXD, RXD. VREF and Vs: -0.3V to VDD +0.3V
- DC Voltage at CANH, CANL: -42V to 42V
- Transient Voltage on Pins 6 and 7: -250V to 250V
- Storage temperature: -55°C to +150°C
- Operating Temperature: -40°C to +125°C
- Virtual Junction Temperature: -40°C to +150°C
-
![HT9315B 15-Memory Tone/Pulse Dialer Telephone Circuit IC CMOS 22-PDIP]()
HT9315B 15-Memory Tone/Pulse Dialer Telephone Circuit IC CMOS 22-PDIP
Rs. 500.00Specification:-
- Package: PDIP22 (0.300", 7.62mm)
- Operating voltage: 2.0V~5.5V
- Operating Current: 2.5V
- 32 digits for redialing
- Low memory retention current: 0.1mA (Typ.)
-

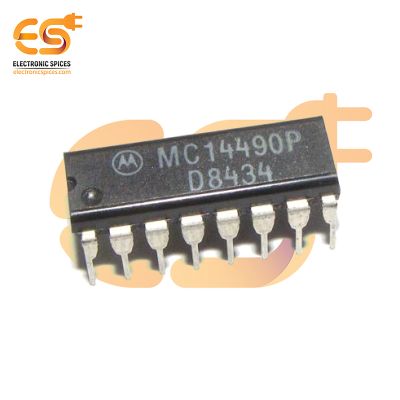

![MC14490 Hex Contact Bounce Eliminator IC (DIP-16 Package)]()
MC14490 Hex Contact Bounce Eliminator IC (DIP-16 Package)
Rs. 359.00Specification:-
- DC Supply Voltage Range: -0.5 to +18.0
- Input or Output Voltage Range: -0.5 to VDD + 0.5
- Input Current (DC or Transient) per Pin: ±10
- Power Dissipation, per Package: 500
- Ambient Temperature: -55 to 125 °C
- Storage Temperature Range: -65 to +150 °C
-
![HT9200 DTMF Signaling Circuit Interface IC 8-SOIC]()
HT9200 DTMF Signaling Circuit Interface IC 8-SOIC
Rs. 500.00Specification:-
- Package: SOIC8 (0.154", 3.90mm)
- Operating Voltage: 2.5V - 5.5V
- OSC Frequency: 3.58 MHz
- Operating Temperature: -20 C to 75 C
- DTMF Tone Generation
-

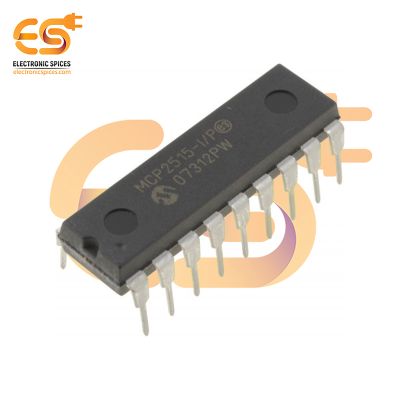

![MCP2515 CAN Controller Interface IC (DIP-18 Package)]()
MCP2515 CAN Controller Interface IC (DIP-18 Package)
Rs. 269.00Specification:-
- Wide operating voltage: 2.7V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temp. with power applied: 65°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- Operating temperature range: -40°C to +125°C
-

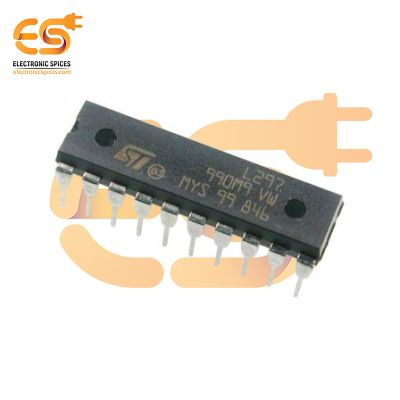

![L297 Stepper Motor Controller IC DIP-20 Package]()
L297 Stepper Motor Controller IC DIP-20 Package
Rs. 129.00Specification:-
- Supply voltage: 10 V
- Vi Input signals: 7 V
- Ptot Total power dissipation (Tamb = 70°C): 1 W
- Storage and junction temperature: -40 to 150 °C
- Clockwise/anticlockwise direction
- Switch mode load current regulation
-

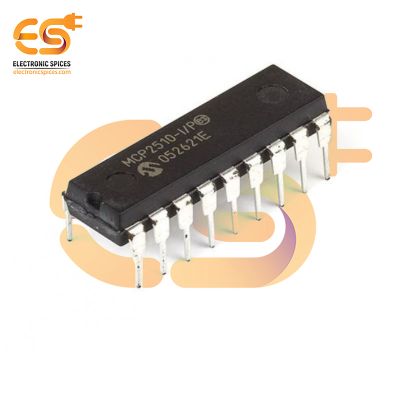

![MCP2510 CAN Controller Interface IC (DIP-18 Package)]()
MCP2510 CAN Controller Interface IC (DIP-18 Package)
Rs. 189.00Specification:-
- Wide operating voltage: 3.3V to 5.5V
- All inputs and outputs w.r.t. VSS: -0.6V to VDD +1.0V
- Storage temperature: -65°C to +150°C
- Ambient temp. with power applied: 65°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD protection on all pins: ≥ 4 kV
- High Speed SPI Interface (5 MHz at 4.5V I temp)
-
![HIN202CP 2/2 Transceiver Full RS232 Interface IC 16-PDIP]()
HIN202CP 2/2 Transceiver Full RS232 Interface IC 16-PDIP
Rs. 500.00Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Out Swing-Min: 10 V
- Supply Current-Max: 15 mA
- Supply Voltage-Max: 5.5 V
- Supply Voltage-Min: 4.5 V
- Supply Voltage-No : 5 V
- Receiver Hysteresis: 500 mV
