LOGIC IC
Showing 1–12 of 137 results
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
-

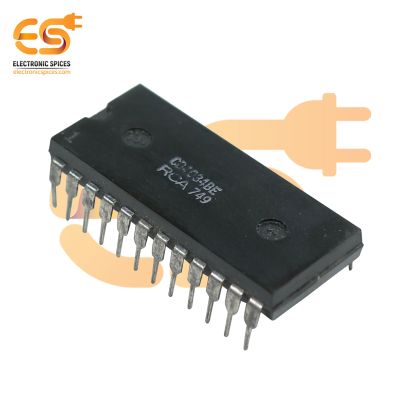

![CD4034BE 8-Bit CMOS Logic IC 24-PIN]()
CD4034BE 8-Bit CMOS Logic IC 24-PIN
Rs. 500.00Specification:-
- Package/Case: PDIP-24
- Logic Type: CMOS
- Number of Input Lines: 3
- Output Type: 3-State
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 18 V
-
![DM74LS30M Logic IC NAND Gate IC 1 Channel 14-SOIC]()
DM74LS30M Logic IC NAND Gate IC 1 Channel 14-SOIC
Rs. 500.00Specification:-
- Package: SOIC14 (0.154", 3.90mm)
- Logic Function: NAND
- Number of Input Lines: 8 Input
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
- Propagation Delay Time: 20 ns
- Low Level Output Current: 8 mA
- High Level Output Current: - 400 uA
-
![DM74ALS175N Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP]()
DM74ALS175N Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP
Rs. 500.00Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Logic Type: D-Type Flip-Flop
- Number of Circuits: 4 Circuit
- Input Type: Single-Ended
- Polarity: Inverting/Non-Inverting
- Low Level Output Current: 8 mA
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
-
![CD4019BCN AND/OR Gate Configurable 4 Circuit 2, 2-Input 16-PDIP]()
CD4019BCN AND/OR Gate Configurable 4 Circuit 2, 2-Input 16-PDIP
Rs. 500.00Specification:-
- Package/Case: PDIP16 (0.300", 7.62mm)
- Number of Output Lines: 1 Output
- Low Level Output Current: 4.2 mA
- High Level Output Current: - 1.8 mA
- Propagation Delay Time: 300 ns
- Supply Voltage - Min: 3 V
- Supply Voltage - Max: 15 V
-
![DM74174N Flip Flop 1-Element D-Type Logic IC 6-Bit Positive Edge 16-PDIP]()
DM74174N Flip Flop 1-Element D-Type Logic IC 6-Bit Positive Edge 16-PDIP
Rs. 500.00Specification:-
- Package: PDIP14 (0.300", 7.62mm)
- Logic Type: D-Type Flip-Flop
- Number of Circuits: 4 Circuit
- Input Type: Single-Ended
- Polarity: Non-Inverting
- Propagation Delay Time: 25 ns
- High Level Output Current: - 800 uA
- Low Level Output Current: 16 mA
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
-
![GD4044B S-R Latch 4 Channel 1:1 IC Tri-State 16-PDIP]()
GD4044B S-R Latch 4 Channel 1:1 IC Tri-State 16-PDIP
Rs. 500.00Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- No. of Pins: 16
- Supply Voltage-Max (Vsup): 5.5 V
- Supply Voltage-Min (Vsup): 4.5 V
- Supply Voltage-Nom (Vsup): 5 V
-
![74VHC244MX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC]()
74VHC244MX Buffer Non-Inverting Logic IC 2-Element 4 Bit per Element 3-State Output 20-SOIC
Rs. 500.00Specification:-
- Package/Case: SOIC20 (0.295", 7.50mm)
- Mounting Style: SMD/SMT
- Polarity: Non-Inverting
- High Level Output Current: - 8 mA
- Low Level Output Current: 8 mA
- Quiescent Current: 4 uA
- Supply Voltage - Min: 2 V
- Supply Voltage - Max: 5.5 V
-
![DM74LS139MX Logic IC Decoder/Demultiplexer 1 x 2:4 16-SOIC]()
DM74LS139MX Logic IC Decoder/Demultiplexer 1 x 2:4 16-SOIC
Rs. 500.00Specification:-
- Package: SOIC16 (0.154", 3.90mm)
- Mounting Style: SMD/SMT
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
- Low Level Output Current: 8 mA
- Number of Circuits: 2 Circuit
-
![DM74LS33M NOR Gate Logic IC 4 Channel Open Collector 14-SOIC]()
DM74LS33M NOR Gate Logic IC 4 Channel Open Collector 14-SOIC
Rs. 500.00Specification:-
- Package: SOIC14 (0.154", 3.90mm)
- Number of Output Lines: 1 Output
- Low Level Output Current: 24 mA
- High Level Output Current: - 100 uA
- Propagation Delay Time: 22 ns
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
-
![DM74LS573N D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-PDIP]()
DM74LS573N D-Type Transparent Latch 1 Channel 8:8 IC Tri-State 20-PDIP
Rs. 500.00Specification:-
- Package: PDIP20 (0.300", 7.62mm)
- Polarity: Non-Inverting
- Propagation Delay Time: 27 ns at 5 V
- High Level Output Current: - 2.6 mA
- Supply Voltage - Min: 4.75 V
- Supply Voltage - Max: 5.25 V
-
![DM74LS175N Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP]()
DM74LS175N Flip Flop 1-Element D-Type Logic IC 4-Bit Positive Edge 16-PDIP
Rs. 500.00Specification:-
- Package: PDIP16 (0.300", 7.62mm)
- Logic Type: D-Type Flip-Flop
- Number of Circuits: 4 Circuit
- Input Type: Single-Ended
- Polarity: Inverting/Non-Inverting
- Low Level Output Current: 8 mA
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
-
![74F521PC Logic IC Magnitude Comparator Bit Active Low Output A=B 20-PDIP]()
74F521PC Logic IC Magnitude Comparator Bit Active Low Output A=B 20-PDIP
Rs. 500.00Specification:-
- Package: PDIP20 (0.300", 7.62mm)
- Mounting Style: Through Hole
- Logic Function: A = B
- Propagation Delay Time: 10 ns
- Supply Voltage - Min: 4.5 V
- Supply Voltage - Max: 5.5 V
