IC

34063API (608AY) DC to DC convertor DIP 8 pin IC

Specification

• Operation from 3.0 V to 40 V Input
• Low Standby Current
• Current Limiting
• Output Switch Current to 1.5 A
• Output Voltage Adjustable
•  Frequency Operation to 100 kHz
•  Precision 2% Reference

LM386 Low power audio frequency amplifier 8 pins IC pack of 50pcs

Specification

1. Low power audio frequency amplifier IC
2. Supply voltage : 4V to 15V
3. Quiescent power :  24mW at 6V
4. Analog input voltage :  0.4V
5. Voltage Gain :  20 to 200 (26dB to 46dB)
6. Speaker impedance :  4Ω
7. Short circuit protection outputs

TDA2003 10W Car radio audio amplifier DIP 7 pins IC pack of 10pcs

Specifications

1. Operating voltage:  8V to 18V
2. Power dissipation: 20W
3. Voltage gain : 80dB
4. Supply voltage rejection :  36dB
5. Short circuit protection
6. Thermal protection

LM386 Low power audio frequency amplifier 8 pins IC pack of 10pcs

Specification

1. Low-power audio frequency amplifier IC
2. Supply voltage: 4V to 15V
3. Quiescent power :  24mW at 6V
4. Analog input voltage :  0.4V
5. Voltage Gain :  20 to 200 (26dB to 46dB)
6. Speaker impedance :  4Ω
7. Short circuit protection outputs

NE5532P low noise dual operational amplifier DIP 8 pins IC pack of 10pcs

Specification

1. Dual operational amplifier IC
2. Supply voltage:  5V to 18V
3. DC voltage gain:  5000
4. Unity gain bandwidth:  10MHz
5. Slew rate:  9V/µs
6. P-P Output swing voltage:  26V

PIC18F2550 High-Performance enhanced flash USB Microcontroller with Nano watt technology DIP 28 pin IC

Specification

1. Operating supply voltage: 4.2V to 5.5V
2. Number of ADC units: 1
3. Timer resolution: 8bit and 16bit
4. Program memory type: flash
5. Ram size: 2.048kb
6. CPU speed: 12MIPS
7. Communication interface: serial

NJM2068L Low noise dual operation amplifier SIP 8 pins IC pack of 50pcs

Specifications

1. Supply voltage  :  4V to 18V
2. Differential input voltage range  :  30V
3. Power dissipation : 500mW
4. Voltage gain :  90 to 120 dB
5. Max. output voltage :  12V
6. Slew rate :  6V/µs

CD4017 Decade counter noise immunity DIP 16 pins IC pack of 10pcs

Specifications

1. Type: Decade counter IC
2. Supply voltage range: 5V to 15V
3. Power dissipation: 700mW
4. Supports 10 decoded outputs
5. High noise immunity: 0.45
6. Low power: 10 µW
7. Maximum clock frequency:  5.5Mhz

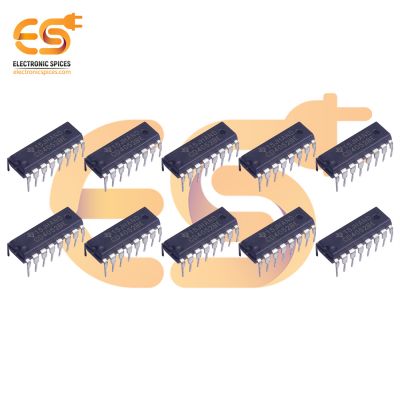

CD4052 4 Channel multiplexer and demultiplexer DIP 16 pins IC pack of 10pcs

Specification

1. Nominal voltage: 5V to 15V
2. Maximum operating voltage: 20V
3. Propagation delay: 400ns at 5V
4. Supports both analog and a digital voltage
5. 4:1 Multiplexer IC
6. 1:4 Demultiplexer IC

LNK306PN Lowest component count Energy efficient off line switcher DIP 7 pin IC

Specification

1. Input supply voltage range AC: 85V to 265V
2. Voltage breakdown: 700V
3. Frequency switching : 66KHz
4. Output isolation : Non-isolated
5. Cycle by cycle current limit
6. Thermal shut down circuitry
7. Number of pin : 7
8. IC type : DIP

4N35 Optocoupler, phototransistor output with base connection DIP 6 pin IC pack of 2pcs

Specification

1. Reverse voltage: 6V
2. Forward current: 50mA
3. Surge current: 1A
4. Power dissipation: 70mW
5. Collector emitter breakdown voltage: 70V
6. Emitter base breakdown voltage: 7V

HT12D Decoder DIP 18 pin IC for remote control system pack of 2pcs

Specification

1. Function : Decoding
2. Number of pin : 18
3. Operating voltage : 5V
4. Low standby current : 4µA at 5V
5. Built-in oscillator
6. Low power and high noise immunity
