IC

PIC16F886 Enhanced flash based 8 Bit Microcontrollers with Nano watt technology DIP 28 pin IC

Specification

1. Program memory type: flash
2. Program memory size: 14KB
3. RAM size : 368bytes
4. Supply voltage : 2.2V to 5.5V
5. Power dissipation : 800mW
6. Communication interface : Serial

NE5532P low noise dual operational amplifier DIP 8 pins IC pack of 10pcs

Specification

1. Dual operational amplifier IC
2. Supply voltage:  5V to 18V
3. DC voltage gain:  5000
4. Unity gain bandwidth:  10MHz
5. Slew rate:  9V/µs
6. P-P Output swing voltage:  26V

CD4049 Hex inverter buffer and convertor DIP 16 pin IC pack of 2pcs

Specification

1. Input supply voltage range: 3V to 18V
2. Supply current: 50mA
3. Temperature range :  -40 to +85°C
4. Input capacitance : 22.5pf
5. Mostly used in voltage multiplier circuit
6. Accept high input supply voltage

LM358 Dual operational amplifier 8 pins IC pack of 50pcs

Specifications

1. Dual operational amplifier
2. Number of amplifier: 2
3. Number of pins: 8
4. Wide power supply range
5. Singe supply: 3V to 32V
6. Dual supply: 1.5V to 16V
7. Low supply current – 700uA
8. Short circuit protection outputs

TDA7389 4 Channel Quad bridge car radio amplifier 27 pins IC pack of 10pcs

Specification

1. Operating supply voltage: 18V
2. Output peak current: 4.5A
3. Max output power : 45 watt
4. Power dissipation : 80 watt
5. Output offset voltage : 80mV
6. Voltage gain : 27dB
7. Number of channel : 4

LM3914 Logarithmic LED dot or bar display driver 18 pins IC pack of 10pcs

Specification

1. Analog-controlled LED Driver IC
2. Number of controllable LEDs: 10
3. Operating voltage:  3V to 18V
4. Input analog voltage range: 1.2V to 12V
5. LED sink current :  2mA to 30mA (programmable)
6. Both Dot and Bar display modes are available

TO-92 LM317L, 3- Terminal adjustable output positive voltage regulator pack of 5pcs

Specification

1. Package: TO-92
2. Output Current Up To 1.5 A
3. Output Voltages 5 Volt Input Voltage 1.2V To 37V
4. Thermal Overload Protection Short Circuit Protection
5. 2 % Output Voltage Tolerance
6. Output Transition SOA Protection

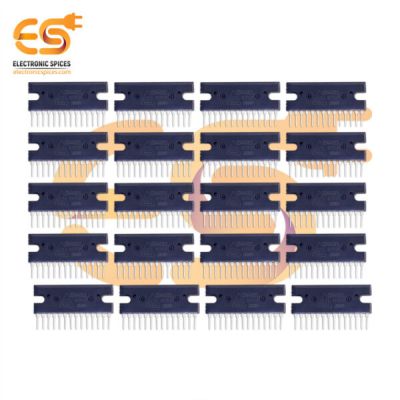

CD4440 40 watt Dual channel audio amplifier SIP 14 pins IC pack of 50pcs

Specification

1. Dual channel amplifier IC
2. Operating voltage : 12V to 18V
3. Number of pin : 14
4. Surge supply voltage :  50V
5. Power dissipation :  25W
6. Output power
   • Dual-mode :   40W
   • Bridge mode :  50W
7. Ripple rejection ratio :  46dB
8. Quiescent current :  100 to 200mA

TO-220 7815, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 14.4V To 15.6V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

MCP3008 8 Channel 10 Bit A/D converter with SPI serial interface DIP 16 pin IC

Specification

1. 8 Channel 10-bit ADC IC
2. Supply voltage range: 2.7V to 5.5V
3. Max sample rate : 200ksamples/sec
4. Low power
5. Resolution : 10 bits
6. Conversion time : 10 clock cycles
7. Max. supply current : 500µA

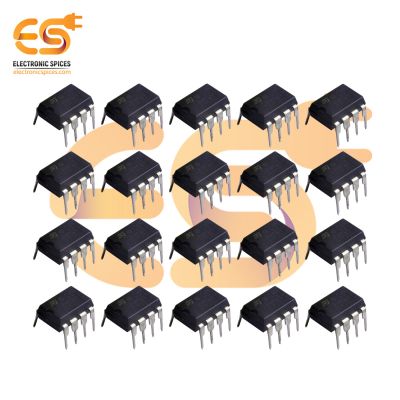

VIPER12A Low power off-line SMPS primary switcher 8 pins IC pack of 50pcs

Specification

1. Output voltage:  5V to 16V
2. Input voltage: 85V to 265V AC
3. Input voltage frequency : 50/60Hz
4. Output current : 200mA
5. Efficiency :  80%
6. Rise time :  50ns
7. Fall time : 100ns

TDA7293 100watt 120V DMOS audio power amplifier with mute and standby feature 15 pins IC pack of 10pcs

Specification

1. Audio power amplifier
2. Supply voltage: 60V
3. Output peak current : 10A
4. Operating ambient temperature range : 0 to 70 °C
5. Open-loop Voltage Gain :  80 dB
6. Output power : up to 100 watts
7. Short circuit and thermal protection
