IC

UC3843AN PWM current mode controller DIP 8 pins IC pack of 10pcs

Specification

1. PWM controller
2. Operating Voltage :  7V to 8V
3. Output pin current :  1A
4. Analog input range  :  -0.3V to 6.3V
5. Oscillation Frequency :  52 approx.
6. Gain value  :  3V
7. Maximum source current :  22mA

LM3914 Logarithmic LED dot or bar display driver 18 pins IC pack of 10pcs

Specification

1. Analog-controlled LED Driver IC
2. Number of controllable LEDs: 10
3. Operating voltage:  3V to 18V
4. Input analog voltage range: 1.2V to 12V
5. LED sink current :  2mA to 30mA (programmable)
6. Both Dot and Bar display modes are available

NE5532P low noise dual operational amplifier DIP 8 pins IC pack of 10pcs

Specification

1. Dual operational amplifier IC
2. Supply voltage:  5V to 18V
3. DC voltage gain:  5000
4. Unity gain bandwidth:  10MHz
5. Slew rate:  9V/µs
6. P-P Output swing voltage:  26V

TEA2025 Stereo audio power amplifier 16 pins IC pack of 50pcs

Specification

1. Dual or bridge connection modes
2. Supply voltage:  3V to 15V
3. Output peak current : 1.5A
4. Voltage gain : 47dB
5. High channel separation
6. Very low switch-on/off the noise
7. Thermal shutdown and short circuit protection

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 50pcs

Specification

1. Supply voltage: 8.5V to 16V
2. Phase slew rate: 20V/ns
3. Operating current : 4A
4. Independently drives 4 N-Channel FET in half-bridge
5. Drives 1000pF load in free air at 50°C

LNK306PN Lowest component count Energy efficient off line switcher DIP 7 pin IC

Specification

1. Input supply voltage range AC: 85V to 265V
2. Voltage breakdown: 700V
3. Frequency switching : 66KHz
4. Output isolation : Non-isolated
5. Cycle by cycle current limit
6. Thermal shut down circuitry
7. Number of pin : 7
8. IC type : DIP

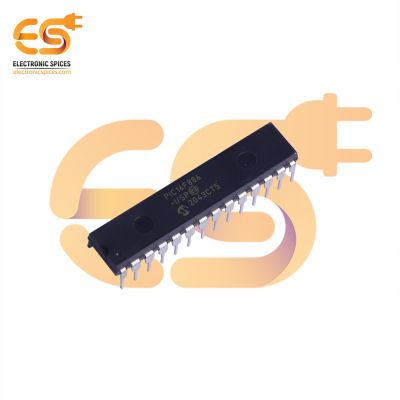

PIC16F886 Enhanced flash based 8 Bit Microcontrollers with Nano watt technology DIP 28 pin IC

Specification

1. Program memory type: flash
2. Program memory size: 14KB
3. RAM size : 368bytes
4. Supply voltage : 2.2V to 5.5V
5. Power dissipation : 800mW
6. Communication interface : Serial

TDA7389 4 Channel Quad bridge car radio amplifier 27 pins IC pack of 10pcs

Specification

1. Operating supply voltage: 18V
2. Output peak current: 4.5A
3. Max output power : 45 watt
4. Power dissipation : 80 watt
5. Output offset voltage : 80mV
6. Voltage gain : 27dB
7. Number of channel : 4

4N35 Optocoupler, phototransistor output with base connection DIP 6 pin IC pack of 2pcs

Specification

1. Reverse voltage: 6V
2. Forward current: 50mA
3. Surge current: 1A
4. Power dissipation: 70mW
5. Collector emitter breakdown voltage: 70V
6. Emitter base breakdown voltage: 7V

LM339 DIP-14/SOP-14 Voltage Comparator IC Pack of 5

Specification:-

• Supply Voltage: 36 VDC or ±18 VDC
• Very Low Supply Current Drain (0.4 mA)
• Independent of Supply Voltage
• Low Input Biasing Current: <250 nA

MOC3021 Opto-isolator TRIAC driver DIP 6 pins IC pack of 50pcs

Specification:

• Forward current : 60mA
• Power dissipation : 100mW
• Off state output terminal voltage : 400V
• Peak repetitive surge current : 1A
• Reverse voltage : 3V
• Excellent IFT stability
• High isolation voltage

U74HC245L 2.3W Dual audio power amplifier 10 pin IC (Pack of 2pcs)

Specification

1. Supply voltage:                              15V
2. Power dissipation:                          4W
3. Operating supply voltage range:      9V to 11V
4. Quiescent circuit current:               40mA to 55mA
5. Closed-loop voltage gain:               43dB to 47dB
6. outer power:                                    2.3W
