IC

LNK306PN Lowest component count Energy efficient off line switcher DIP 7 pin IC

Specification

1. Input supply voltage range AC: 85V to 265V
2. Voltage breakdown: 700V
3. Frequency switching : 66KHz
4. Output isolation : Non-isolated
5. Cycle by cycle current limit
6. Thermal shut down circuitry
7. Number of pin : 7
8. IC type : DIP

U74HC245L 2.3W Dual audio power amplifier 10 pin IC (Pack of 2pcs)

Specification

1. Supply voltage:                              15V
2. Power dissipation:                          4W
3. Operating supply voltage range:      9V to 11V
4. Quiescent circuit current:               40mA to 55mA
5. Closed-loop voltage gain:               43dB to 47dB
6. outer power:                                    2.3W

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 50pcs

Specification

1. Supply voltage: 8.5V to 16V
2. Phase slew rate: 20V/ns
3. Operating current : 4A
4. Independently drives 4 N-Channel FET in half-bridge
5. Drives 1000pF load in free air at 50°C

NJM2068L Low noise dual operation amplifier SIP 8 pin IC pack of 2pcs

Specifications

1. Supply voltage  :  4V to 18V
2. Differential input voltage range  :  30V
3. Power dissipation : 500mW
4. Voltage gain :  90 to 120 dB
5. Max. output voltage :  12V
6. Slew rate :  6V/µs

LM311 Differential comparator op-amp DIP 8 pins IC pack of 50pcs

Specification

1. Wide power supply Range
   1. Singe supply :  5V to 30V
   2. Dual supply : ±2.5V to ±15V
2. Maximum current : 7.5mA
3. Single supply for two op-amps enables reliable operation
4. Capable of driving load up to 50V and 50 mA

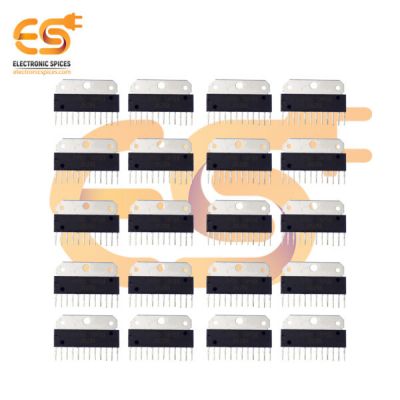

D6283 6 watt dual channel audio amplifier SIP 12 pins IC pack of 50pcs

Specification

1. 6 watt dual channel audio amplifier
2. Type : SIP
3. Number of pins : 12
4. Operating voltage : 6V to 15V
5. Output current : 2.5A
6. Power dissipation : 12.5W
7. Short circuit and thermal shutdown protection

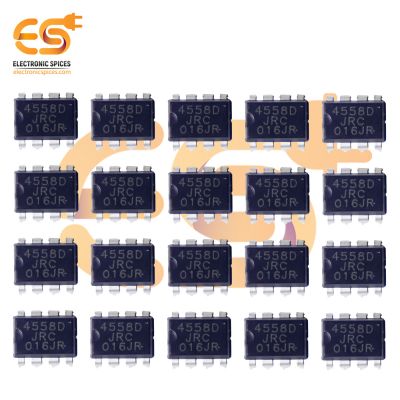

JRC4558D monolithic dual operational amplifier DIP 8 pins IC pack of 50pcs

Specification

1. Dual operational amplifier IC
2. High performance
3. Supply voltage range :  5V to 15V
4. Bandwidth  :  3MHz
5. No. of pins :  8
6. Operating temperature max :  70°C
7. Slew rate :  1.7 V/µs

4N35 Optocoupler, phototransistor output with base connection DIP 6 pins IC pack of 10pcs

Specification

1. Reverse voltage: 6V
2. Forward current: 50mA
3. Surge current : 1A
4. Power dissipation : 70mW
5. Collector emitter breakdown voltage : 70V
6. Emitter base breakdown voltage : 7V

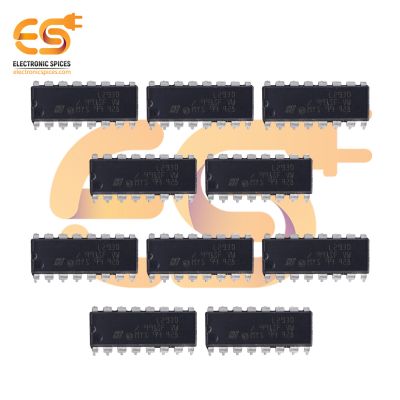

L293D Quadruple half-H driver or motor driver 16 pins IC pack of 10pcs

Specification

1. Quadruple high current half-H driver IC
2. Or motor driver IC
3. Supply voltage : 5V to 7V
4. Output voltage : 5V to 36V
5. Max. current : 600mA
6. Number of pin : 16
7. Peak output current : 1.2A

HT12E Encoder DIP 18 pins IC for remote control system pack of 10pcs

Specification

1. Function: DIP Encoder IC
2. Number of pins: 18
3. Operating voltage range: 2.4V to 12V
4. Data code has a positive polarity
5. Low standby current: 0.1µA at 5V
6. Built-in oscillator
7. Low power and high noise immunity

CD4017 Decade counter noise immunity DIP 16 pins IC pack of 10pcs

Specifications

1. Type: Decade counter IC
2. Supply voltage range: 5V to 15V
3. Power dissipation: 700mW
4. Supports 10 decoded outputs
5. High noise immunity: 0.45
6. Low power: 10 µW
7. Maximum clock frequency:  5.5Mhz

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 10pcs

Specification

1. Supply voltage : 8.5V to 16V
2. Phase slew rate : 20V/ns
3. Operating current : 4A
4. Independently drives 4 N-Channel FET in half-bridge
5. Drives 1000pF load in free air at 50°C
