HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 10pcs

HIP4082 80V 1.25A peak current H-bridge FET driver 16 pins IC pack of 10pcs

This is a medium frequency, medium voltage H-Bridge N-Channel MOSFET driver IC. It is specifically designed for PWM motor control and UPS applications. Bridge-based designs are built simple and flexible with the HIP4082 H-bridge driver. With operation up to 80V, the device is best suited to applications of moderate power levels. This IC is ideal for switching frequencies up to 200kHz. The HIP4082 does not contain an internal charge pump but does incorporate non-latching level-shift translation control of the upper drive circuits.

Package includes

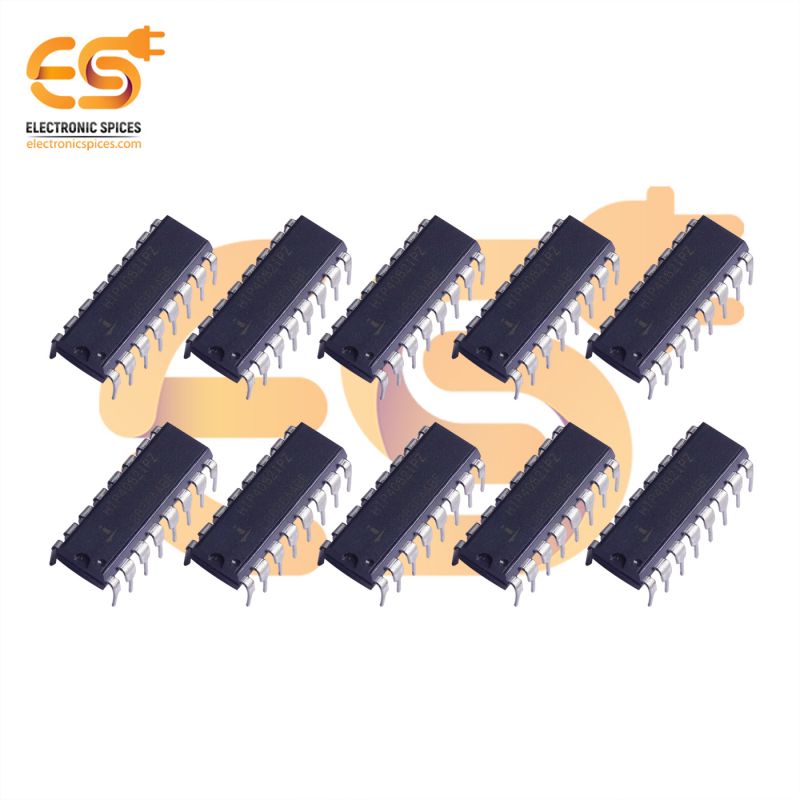

This is the pack of 10 pieces of HIP4082 80V 1.25A peak current H-bridge FET driver 16 pin IC

Features

1. Independently drives 4 N-Channel FET in half-bridge or Full bridge configurations
2. Bootstrap supply max voltage to 95VDC
3. Drives 1000pF load in free air at 50°C with rising and fall times of typically 15ns
