L298N Dual Full Bridge Driver IC Multiwatt-15 Package
Specification:-
- Supply voltage: 50 V
- Logic supply voltage: 7 V
- Ven-Input and Enable Voltage: -0.3 to 7 V
- Vsens-Sensing Voltage: -1 to 2.3
- Ptot-Total Power Dissipation: 25 W
- Junction temperature range: -25 to 130 °C
- Storage temperature range: -40 to 150 °C
SKU: BV8524A

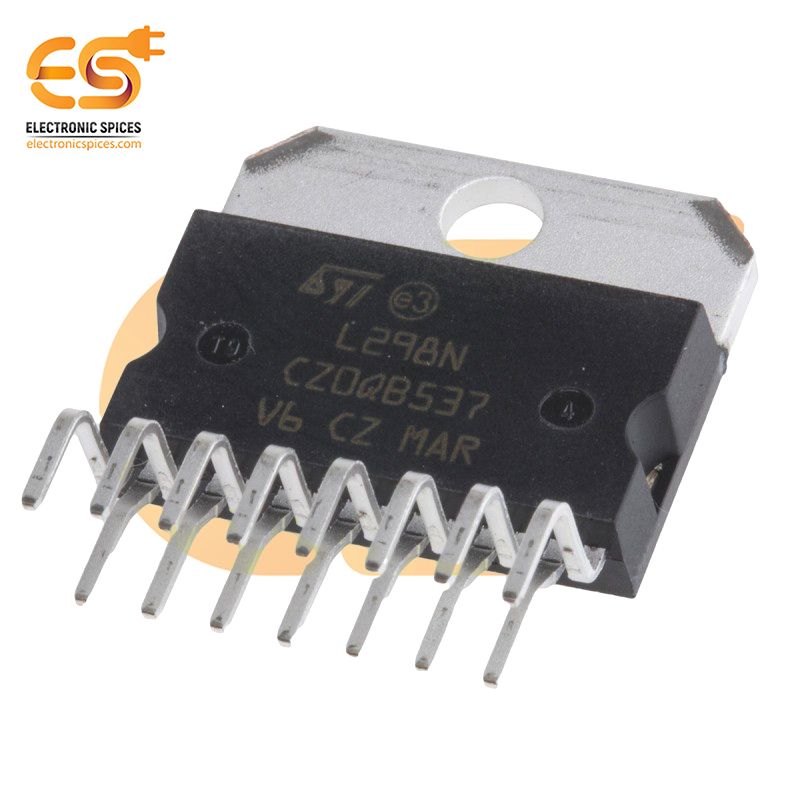

L298N Dual Full Bridge Driver IC Multiwatt-15 Package
The L298N is a dual full-bridge driver IC packaged in a Multiwatt-15 form factor, designed for driving DC and stepper motors in various applications such as robotics, automation, and control systems. This versatile integrated circuit is capable of delivering up to 46V across its outputs. It can handle a continuous output current of up to 2A per channel, with peak currents reaching up to 3A. The L298N contains two H-Bridge circuits, which allow independent control of two motors or actuators, making it ideal for driving bipolar DC motors and stepper motors. Each bridge provides bidirectional control, meaning the motors can rotate in both directions, and the speed can be controlled by adjusting the input PWM signal. The IC supports both serial and parallel control, providing flexibility for various motor control strategies. Key features of the L298N include thermal shutdown, overcurrent protection, and short-circuit protection, which ensure the device's reliability and durability under harsh operating conditions. The IC also includes diode protection for back EMF from the motors, helping to safeguard the driver from potentially damaging voltage spikes.
Features:-
- Low power consumption
- Compact and Easy Integration
- Low saturation voltage
- Over temperature protection
