IC

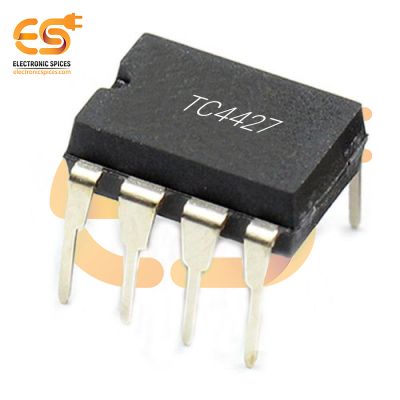

TC4427 Power MOSFET Driver SMD IC

Specification:-

• High Peak Output Current: 1.5A
• Input Withstands Negative Inputs Up to 5V
• Input Supply Voltage Operating Range: – 4.5V to 18V
• Short Delay Times: 40 ns (typical)
• High Capacitive Load Drive Capability: 1000 pF in 25 ns (typical)

TLC5940 16-Channel PWM Control LED Driver IC (DIP-28 Package)

Specification:-

• No. of Channels: 16
• CMOS Level I/O
• 30 MHz Data Transfer Rate
• Supply voltage range: 3.V to 5.5V
• Drive Capability: 0 mA to 60 mA (VCC < 3.6 V)
• Thermal error flagging

B1403 5 dot red green LED lever meter driver SIP 9 pins IC pack of 50pcs

Specification

1.  Capable of generating a bar-display
2. Operates from either AC or DC input voltage
3. Type : SIP LED driver
4. Supply voltage : 6V to 16V
5. Power dissipation  : 1100mW
6. Low noise

L4978 2A Step Down Switching Regulator SMD IC

Specification:-

• Mounting: SMD
• Up to 2a step down converter
• Operating input voltage from 8v to 55v
• Precise 3.3v (±1%) internal reference voltage
• Output voltage adjustable from 3.3v to 50v
• Switching frequency adjustable up to 300khz

XR2206 Monolithic Function Generator IC

Specification:-

• Mounting: SMD
• Power Supply: 26V
• Power Dissipation: 750mW
• Derate Above 25°C: 5mW/ °C
• Total Timing Current: 6mA
• Storage Temperature: 65 °C to +150°C

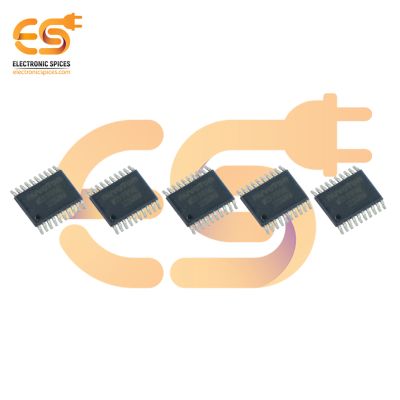

MS51FB9AE 8-Bit Microcontroller IC 20-TSSOP Package Pack of 5

Specification:-

• Core Processor: 8051
• Core Size: 8-Bit
• Speed: 24MHz
• Voltage Supply: 2.4V ~ 5.5V
• Connectivity: I²C, SPI, UART/USART
• Operating Temperature: -40°C ~ 105°C
• Package/Case: 20-TSSOP

MB10s 4 PIN SMD 0.5A Bridge Rectifier IC

Specification:-

• Input Voltage: 50-1000V
• Maximum RMS Bridge Input Voltage: 700V
• Maximum DC Blocking Voltage: 1000V
• Maximum Average Forward Output Current: 0.5A
• Maximum Forward Voltage Drop per Bridge: 1V
• Operating Temperature Range: -55°C to + 150°C

KA2281 5-Dot Dual Led Level Meter Driver 16 DIP IC Pack of 10

Specification:-

• Supply Voltage: 16V
• D Terminal Output Current: 30mA
• Power Dissipation: 600mW
• Operating Temperature: -20°C + 70°C
• Storage Temperature: -40°C + 125°C

62256 32Kx8 bit CMOS Static RAM IC (DIP-28 Package)

Specification:-

• High speed: 55 ns
• Voltage range: 4.5 V to 5.5 V operation
• Supply voltage to ground potential: –0.5 V to +7.0 V
• Storage temperature: -65°C to +150°C
• Ambient temperature with power applied : -55°C to +125°C
• DC voltage applied to outputs in high Z State: –0.5 V to VCC + 0.5 V
• DC input voltage: –0.5 V to VCC + 0.5 V

SN74HC164 8 Bit parallel out serial shift registers DIP 14 pins IC pack of 10pcs

Specification

1. Operating voltage range : 2V to 6V
2. Number of bits per element : 8
3. Shift register function : Serial to parallel
4. Number of elements : 1 element
5. Logic function : Shift register
6. Input clamp current : 20mA

74AC245PC Octal bidirectional transceiver with 3 state input and output DIP 20 pins IC pack of 10pcs

Specification

1. Octal bidirectional transceiver
2. Supply voltage : 2V to 6V
3. Power dissipation : 45pF
4. Input capacitance : 4.5pF
5. Leakage current : 3 µA

TO-92 78L24, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 23V To 25V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection
