IC

IR2153 Self Oscillating Half Bridge Driver IC (DIP-8 Package)

Specification:-

• High side floating supply voltage: -0.3 to 625 V
• High side floating supply offset voltage: VB -25 to VB +0.3 V
• High side floating output voltage: -0.3 to VB +0.3 V
• Low side output voltage: -0.3 to VCC+0.3 V
• RT pin voltage: -0.3 to VCC+0.3 V
• Supply current (note 1): 25 mA

CD4511 BCD To 7 Segment Latch Decoder Driver IC (DIP-16 Package)

Specification:-

• Max. input current of 1 µA at 18 V
• 5-V, 10-V, and 15-V parametric ratings
• High-output-sourcing capability up to 25 mA
• 7-segment outputs blanked for BCD input codes > 1001

TO-92 78L24, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 23V To 25V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

SG3524N Regulating pulse width modulator DIP 16 pins IC pack of 50pcs

Specification

1. Supply voltage range :  8V to 40V
2. Output voltage  :  5V
3. Output current  : 50 mA
4. Dual output
5. Topology  :  Boost, Buck, Fly-back, Forward, Push-Pull
6. Switching frequency :  722 kHz
7. Fall Time :  100 ns

74LS08 Quadruple 2-Input Positive AND Gate IC DIP-14 Package

Specification:-

• Number of pins: 14
• Supply Voltage: 4.75 – 5.25Vdc
• Minimum Output Current: 8mA
• Propagation Delay: 10nS
• Maximum Clock Frequency: 40Mhz
• Power Dissipation: 2mW/gate @100kHz
• Operating temperature:0°C  to 70°C

LTH7R Charge and Charge Management IC SOT-23-5

Specification:-

• Package: SOT-23-5
• Input supply voltage: 7V
• PROG voltage: 0.3V
• Maximum junction temperature: 110°C
• Storage temperature: -65°C to +125°C

CD4013 Dual D Type Flip-Flop SMD IC

Specification:-

• Wide supply voltage range: 3.0V to 15V
• High noise immunity: 0.45 VDD (typ.)
• DC Supply Voltage: -0.5 VDC to +18 VDC
• Input Voltage: 0.5 VDC to VDD +0.5 VDC
• Storage Temperature: -65°C to +150°C
• Power Dissipation: 700 mW
• Lead Temperature: 260°C

74LS139 Dual 2-to-4 line Decoder/Demultiplexer IC DIP-16 Package

Specification:-

• Number of pins: 16
• Supply Voltage (VCC): 7 V
• Input Voltage (VI): 7 V
• Operating free-air temperature range: 0°C to +70°C
• Storage temperature range: -65°C to +150°C

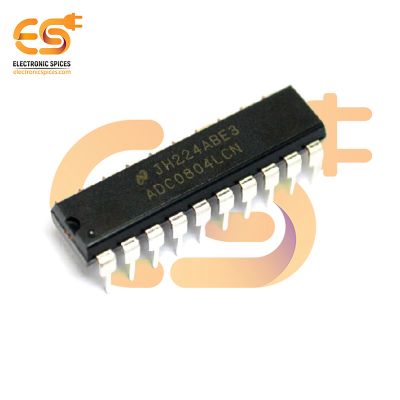

ADC0804 8-Bit Analog to Digital A/D Converter IC (DIP-20 Package)

Specification:-

• Supply Voltage: 6.5 V
• Conversion Time <100µs
• Voltage at Any Input: -0.3 V to (V+ +0.3 V)
• Temperature Range: 0°C to 70°C
• Analog Voltage Input Range (Single + 5V Supply)  0V to 5V

74AC245PC Octal bidirectional transceiver with 3 state input and output DIP 20 pins IC pack of 50pcs

Specification

1. Octal bidirectional transceiver
2. Supply voltage : 2V to 6V
3. Power dissipation : 45pF
4. Input capacitance : 4.5pF
5. Leakage current : 3 µA

TO-92 78L08, 3-Terminal Positive Voltage Regulator IC pack of 5pcs

Specification

1. Output Current Up To 1.5 A
2. Input Voltage 7.7V To 8.3V
3. Thermal Overload Protection Short Circuit Protection
4. 2 % Output Voltage Tolerance
5. Output Transition SOA Protection

MC33153P Single IGBT Gate Driver IC (DIP-8 Package)

Specification:-

• Power Supply Voltage: 20 V
• Logic Input: VEE −0.3 to VCC V
• Current Sense Input: −0.3 to VCC V
• Blanking/Desaturation Input: −0.3 to VCC V
• Maximum Power Dissipation = 50°C: 0.56W
• Operating Junction Temperature: 150 °C
• Operating Ambient Temperature: -40 to 105 °C
• Storage Temperature Range: -65 to +150 °C
