Specification:-
- Power Supply Voltage: 20 V
- Logic Input: −0.3 to VCC V
- Gate Drive Output-Source Current: 1.5 A
- Maximum Power Dissipation = 50°C: 0.56 W
- Operating Junction Temperature: 150 °C
- Operating Ambient Temperature: 0 to +70 °C
- Storage Temperature Range: -65 to +150 °C
- Two Independent Channels with 1.5 A Totem Pole Output
SKU: IA8524A

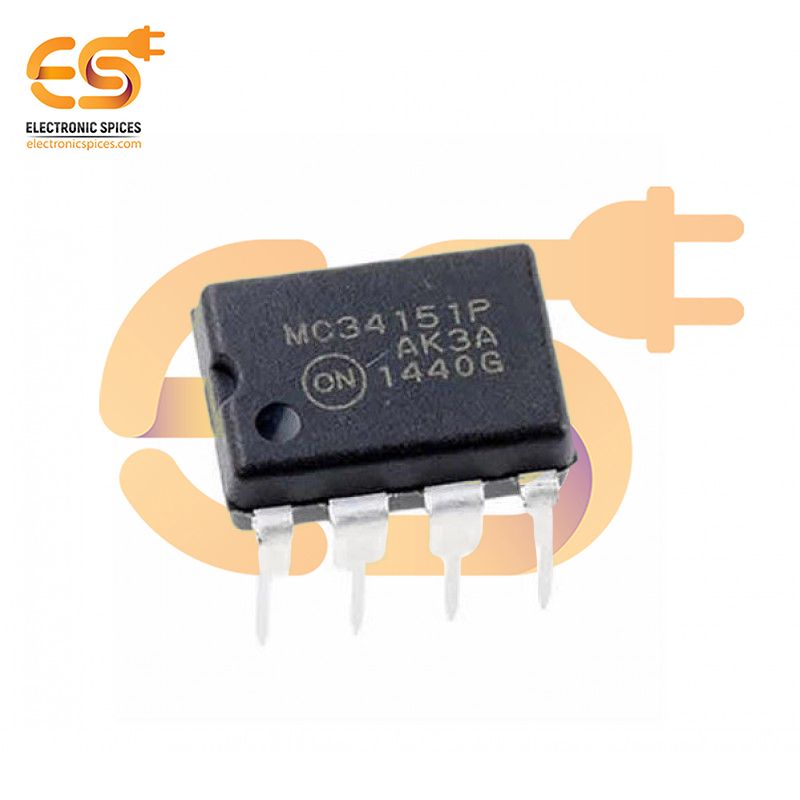

MC34151 High Speed Dual MOSFET Driver IC (DIP-8 Package)
The MC34151 is a high-speed, dual-channel MOSFET driver IC housed in a DIP-8 package, designed to provide reliable and efficient driving of MOSFETs and insulated gate bipolar transistors (IGBTs). It is tailored for high-performance power applications, including motor drives, power converters, and switching regulators. This IC delivers a peak output current of up to 1.5A per channel, making it ideal for applications requiring rapid switching of capacitive loads. With fast rise and fall times, the MC34151 supports high-frequency operation, contributing to enhanced efficiency in power systems. The device is equipped with low propagation delays, ensuring precise timing and responsiveness in demanding circuits. The MC34151 is compatible with TTL and CMOS logic levels, simplifying integration into various digital control systems. It features under-voltage lockout (UVLO) protection, which prevents erratic operation when the supply voltage is insufficient, ensuring reliability. Its dual independent channels allow for flexibility in driving complementary configurations such as half-bridge or full-bridge topologies.
Features:-
- Low power consumption
- Compact and Easy Integration
- Fast rise and fall times for high-frequency switching
- TTL and CMOS logic-compatible inputs
- Built-in under-voltage lockout (UVLO) protection
- Compact DIP-8 package for easy PCB integration
