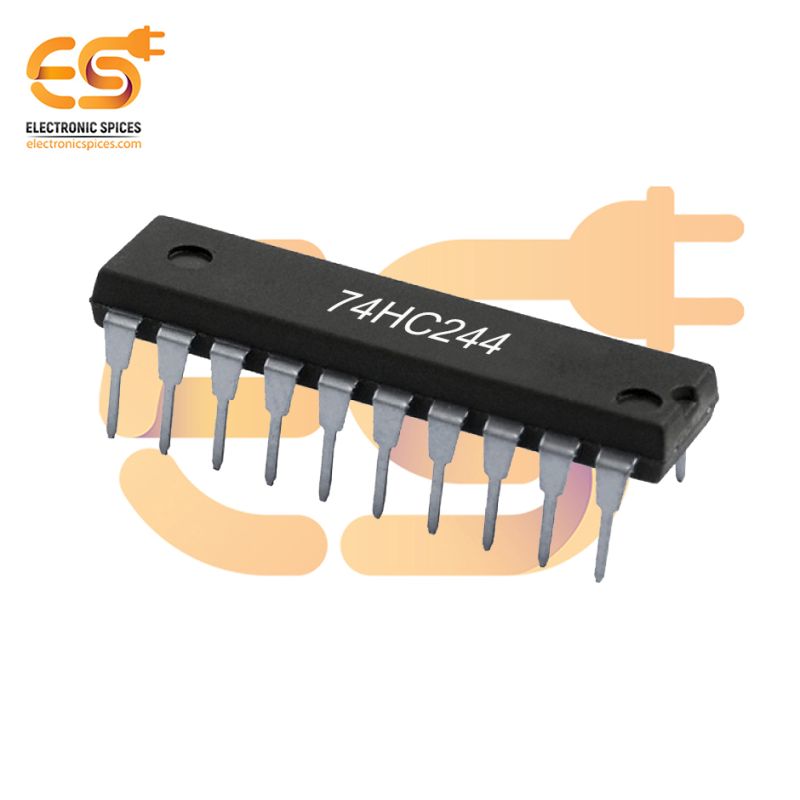

74HC244 Octal Buffer Line Driver IC DIP-20 Package
Specification:-
- Number of pins: 20
- Supply voltage: 2.0V – 6.0V
- Input Voltage: 7V
- 8-bit 3 states buffer
- Octal bus interface
- Non-inverting 3-state outputs
- Complies with JEDEC standard no. 7 A
SKU: TM9018A
74HC244 Octal Buffer Line Driver IC DIP-20 Package
The 74HC244 Octal Buffer/Line Driver IC is an essential component in digital electronics, designed to provide high-speed buffering and signal amplification across multiple data lines. Packaged in a convenient DIP-20 form, this IC includes eight individual buffer/line drivers, each with the capacity for tri-state outputs. This allows it to interface efficiently with multiple data buses or components, making it ideal for use in microprocessor systems, memory applications, and digital communication systems where signal integrity and reliable data transmission are crucial. Built using high-speed CMOS technology, the 74HC244 operates with a supply voltage range from 2V to 6V, making it compatible with both TTL and CMOS logic levels. The device’s tri-state (three-state) outputs provide a high impedance when not in use, which allows it to be connected to a common bus without interfering with other devices, a valuable feature for shared-bus systems.
Features:-
- Octal Buffer/Line Driver
- Standard DIP-20 Package
- High-Speed CMOS Technology
- Compatible with both standard CMOS and TTL logic levels
- Direct Interface with Microprocessors and Memory Devices
