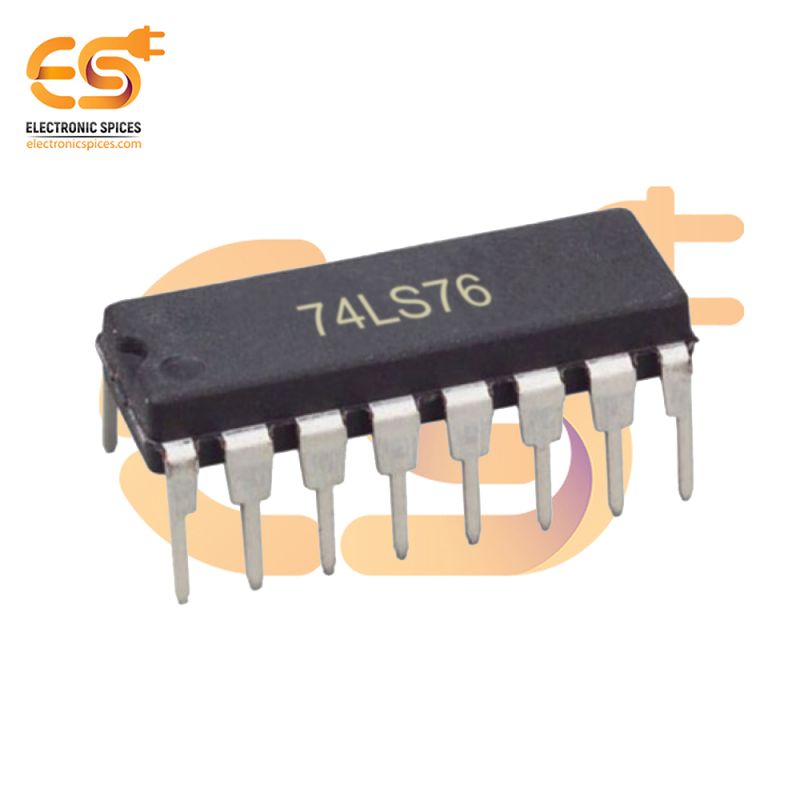

74LS76 Dual JK Flip-Flop with Set and Clear IC DIP-16 Package

74LS76  Dual JK Flip-Flop with Set and Clear IC DIP-16 Package

The 74LS76 is a dual JK flip-flop integrated circuit packaged in a DIP-16 format. This component features two independent flip-flops, each capable of toggling between two states (set and reset) based on the inputs provided. The JK flip-flop configuration allows for versatile functionality, where the J and K inputs determine the next state of the flip-flop based on the clock signal. When both inputs are high, the flip-flop toggles its output on each clock pulse, enabling complex state transitions that are particularly useful in counting and timing applications. One of the standout features of the 74LS76 is its preset and clear functions, which allow for asynchronous control of the flip-flop states. The preset input can be used to set the output to high regardless of the clock, while the clear input can reset the output to low, providing a convenient method for initializing the flip-flops to known states in digital circuits. With low-power Schottky TTL technology, the 74LS76 offers fast switching speeds and low power consumption, making it suitable for high-speed digital applications. It can operate at frequencies up to several megahertz, allowing it to fit seamlessly into various digital systems, including counters, registers, and state machines.

Features:-

• Dual Flip-Flops
• DIP-16 Package
• Low Power Consumption
• High-Speed Performance
• Compatible with standard TTL logic levels
