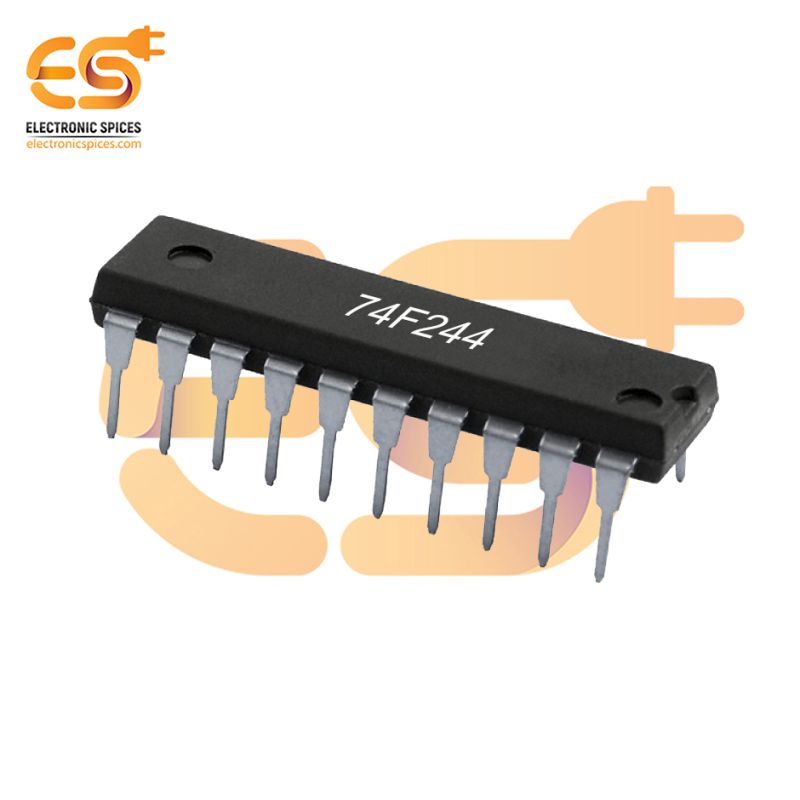

74F244 Octal Buffers/Line Drivers with 3-State Outputs IC DIP-20 Package
Specification:-
- Number of pins: 20
- Supply voltage: 4.5V – 5.5V
- High-level input voltage: 2.0V
- Low-level input voltage: 0.8V
- Input clamp current: -18mA
- High-level output current: -15mA
- Low-level output current: 64mA
- Output current when low: 8mA
SKU: JQ9018A
74F244 Octal Buffers/Line Drivers with 3-State Outputs IC DIP-20 Package
The 74F244 Octal Buffer/Line Driver IC is designed to provide strong buffering capabilities for digital circuits, featuring eight independent buffers and line drivers in a single IC. It’s ideal for use in scenarios requiring high-performance data transfer and signal integrity, such as microprocessor and memory interfacing. Each buffer operates with 3-state outputs, allowing the device to either actively drive a signal high or low or enter a high-impedance (high-Z) state. This enables multiple devices to share the same bus without interference, crucial for data buses and multiplexed systems. Operating at 5V, the 74F244 provides fast switching times, thanks to the advanced TTL (Fast Logic) design. This translates to minimized propagation delays and enhanced responsiveness for data-heavy environments. Its robust design also ensures a high drive capability, allowing it to handle significant output currents for stronger signal transmission over extended distances or through multiple devices.
Features:-
- Octal Buffer/Line Driver
- High Drive Capability
- 5V Operating Voltage
- Low Power Consumption
- Operates on the advanced TTL Fast Logic series
