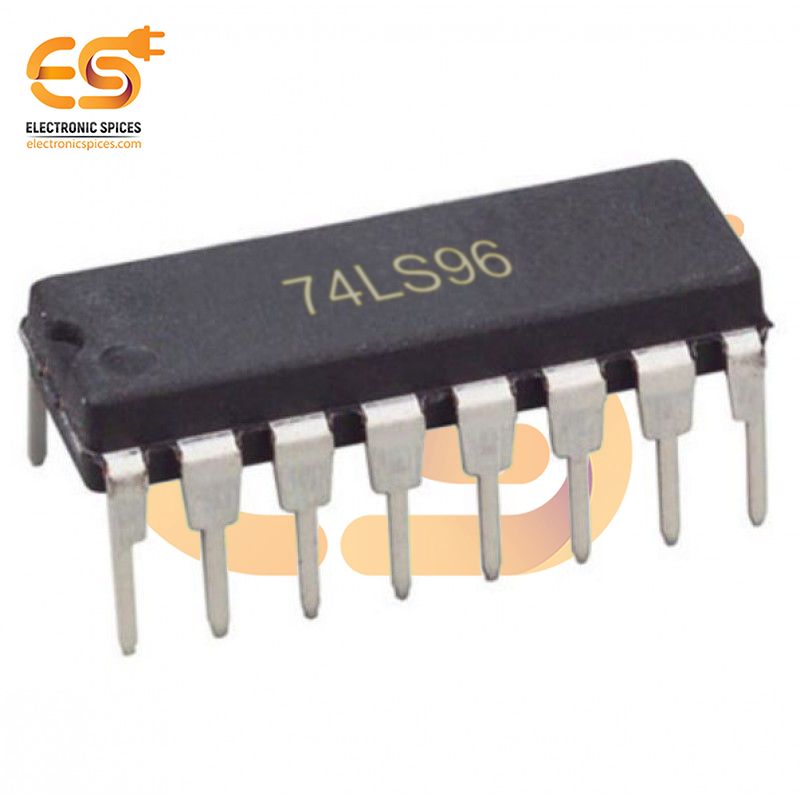

74LS96 5-Bit Shift Register IC DIP-16 Package

74LS96  5-Bit Shift Register IC DIP-16 Package

The 74LS96 is a 5-bit shift register IC housed in a 16-pin Dual In-Line Package (DIP). This device is a versatile component designed for applications that require data storage and manipulation in digital systems. Operating on a supply voltage range of 4.75V to 5.25V, the 74LS96 integrates five individual stages of data storage, allowing for serial input and output capabilities. One of the key features of the 74LS96 is its ability to perform both serial and parallel shifting. It can shift data in either direction—left or right—facilitating flexible data handling in various applications. This makes the 74LS96 particularly useful in applications like digital signal processing, data buffering, and temporary storage, where sequential data management is crucial. The IC is designed with active-low reset and clock inputs, providing straightforward control over data manipulation processes. It supports cascading, allowing multiple shift registers to be connected in series for expanded data-handling capabilities. The integrated design ensures low power consumption while maintaining high-speed performance, making it suitable for modern electronics.

Features:-

• 5-Bit Storage
• Dual Functionality
• Low Power Consumption
• High-Speed Performance
• Housed in a standard 16-pin Dual In-Line Package
