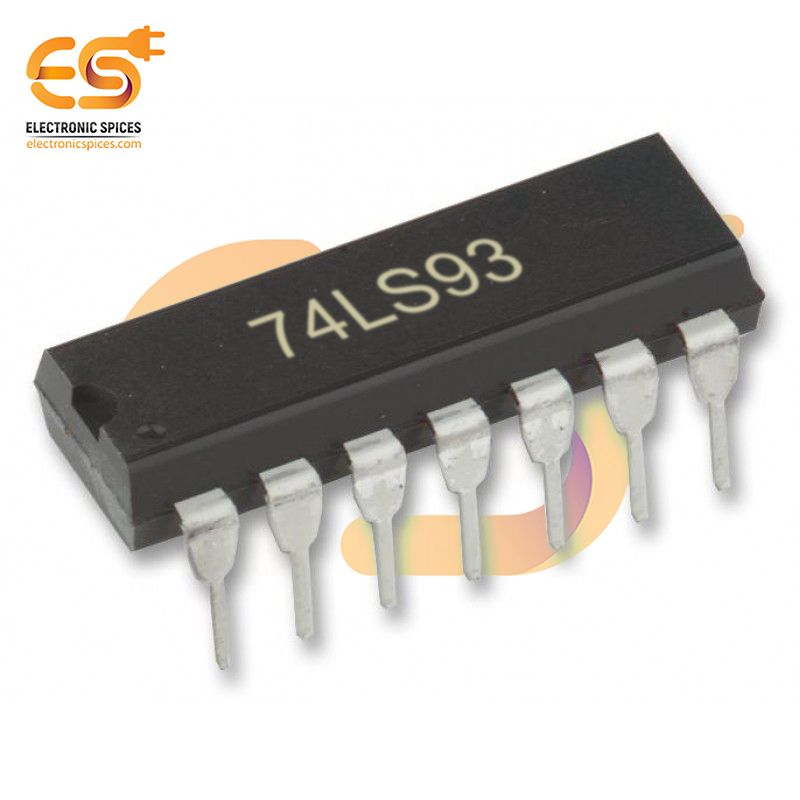

74LS93 5V 4Bit Binary Counter 14-Pin DIP

74LS93 5V 4Bit Binary Counter 14-Pin DIP

The 74LS93 is a versatile, 4-bit binary counter IC designed for use in digital counting applications. As part of the 74LS logic series, it is built to operate at 5V, which makes it compatible with most TTL (Transistor-Transistor Logic) systems. This IC contains two separate counters within a single package: a mod-2 counter and a mod-8 counter, which can work independently or in cascade for more complex counting operations. The cascading capability is particularly useful for applications requiring counts beyond 15, as it allows for easy integration with additional counters for extended counting ranges. The 74LS93 operates in an asynchronous mode, meaning that each flip-flop is triggered independently of others, resulting in faster operation compared to synchronous counters. An asynchronous clear feature is also included, enabling quick reset to zero, making it simple to start or stop the count sequence as needed. Packaged in a standard DIP-14 (Dual In-Line Package with 14 pins), it’s easy to use on breadboards and in prototyping setups.

Features:-

• Dual Counters
• Compact DIP-14 Package
• Low Power Consumption
• Each flip-flop operates independently
