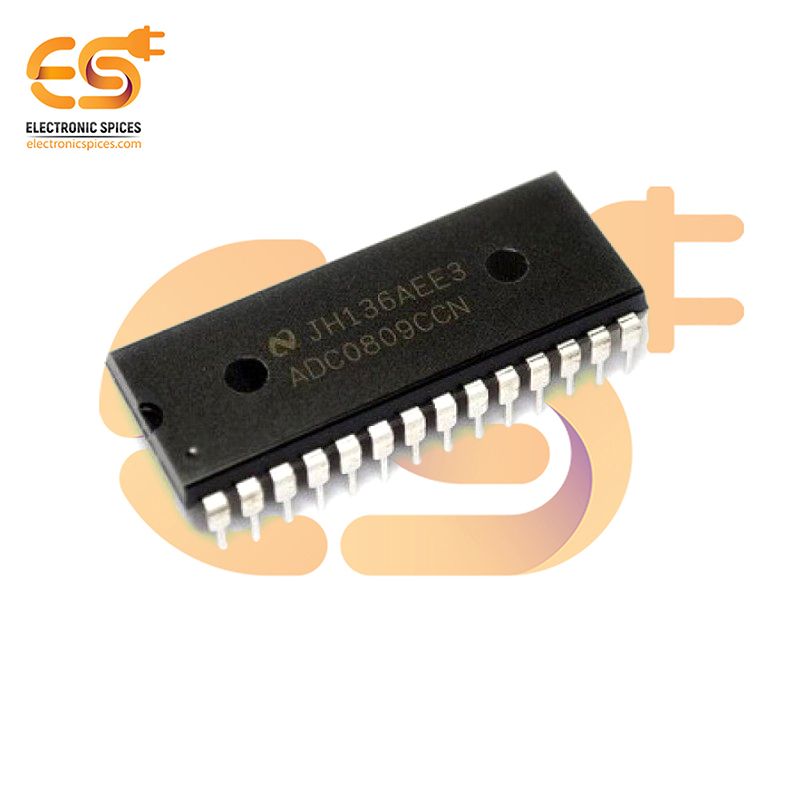

ADC0809 8-Bit A/D Converter with 8-Channel Multiplexer IC (DIP-28 Package)
Specification:-
- Number of input channels: 8
- Interface: Parallel
- Power consumption: 15 mW
- Input type: Single-Ended
- 8-Channel Multiplexer with Address Logic
- Operating temperature range: -40°C to 85°C
SKU: CX9102A
ADC0809 8-Bit A/D Converter with 8-Channel Multiplexer IC (DIP-28 Package)
The ADC0809 is an 8-bit Analog-to-Digital Converter (ADC) IC with an integrated 8-channel multiplexer, housed in a DIP-28 package. This versatile IC is ideal for applications requiring the conversion of multiple analog signals into digital data for processing in microcontroller-based systems, such as data acquisition, industrial automation, and embedded control. The ADC0809 offers an 8-bit resolution, providing 256 discrete digital levels, ensuring accurate representation of input signals. Its built-in 8-channel multiplexer enables it to handle up to eight analog input signals, selectable through address lines, making it efficient for multi-sensor setups. The IC employs the successive approximation method for fast and reliable analog-to-digital conversion, with a typical conversion time of 100 microseconds at a clock frequency of 640 kHz. operating over a wide voltage range of 4.5V to 6V, the ADC0809 is suitable for various digital systems. It features a reference voltage input, allowing adjustable conversion ranges to match specific application needs. The IC outputs digital data in parallel, simplifying integration with microcontrollers or other digital processors.
Features:-
- Low Power Consumption
- Easy Interface to All Microprocessors
- Outputs meet TTL Voltage Level Specifications
