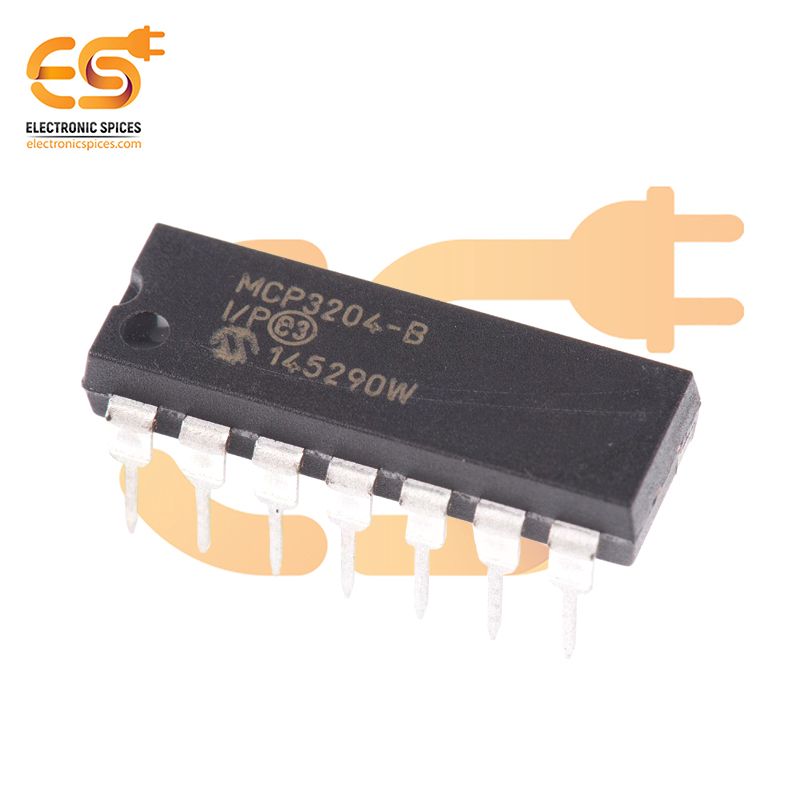

MCP3204 12-Bit 4-Channel A/D Converter (ADC) with SPI Interface IC (DIP-14 Package)
Specification:-
- Single supply operation: 2.7V – 5.5V
- 100 ksps max. sampling rate at VDD = 5V
- 50 ksps max. sampling rate at VDD = 2.7V
- All Inputs and Outputs w.r.t. VSS: -0.6V to VDD +0.6V
- Storage Temperature: -65°C to +150°C
- Ambient temperature with power applied: -65°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD Protection On All Pins (HBM): ≥ 4 Kv
SKU: GX9102A
MCP3204 12-Bit 4-Channel A/D Converter (ADC) with SPI Interface IC (DIP-14 Package)
The MCP3204 is a 12-bit Analog-to-Digital Converter (ADC) with 4 input channels and an SPI (Serial Peripheral Interface) communication protocol, housed in a DIP-14 package. This IC is designed for precise and efficient analog signal conversion, making it an excellent choice for applications such as data acquisition, sensor interfacing, and embedded control systems. The MCP3204 offers a 12-bit resolution, delivering 4096 discrete levels for highly accurate digital representation of analog signals. It supports four analog inputs, which can be configured in either single-ended or differential mode, providing flexibility to adapt to various application requirements. The SPI interface ensures seamless and high-speed communication with microcontrollers, making integration straightforward. The ADC operates over a wide supply voltage range of 2.7V to 5.5V, allowing compatibility with both low-power and standard systems. With a maximum sampling rate of 100 ksps (kilo-samples per second), it provides reliable performance in dynamic and real-time environments. The MCP3204 also features low power consumption, making it ideal for battery-operated and portable devices.
Features:-
- Low Power Consumption
- Easy Interface to All Microprocessors
- On-chip sample and hold
- Available in PDIP, SOIC and TSSOP packages
