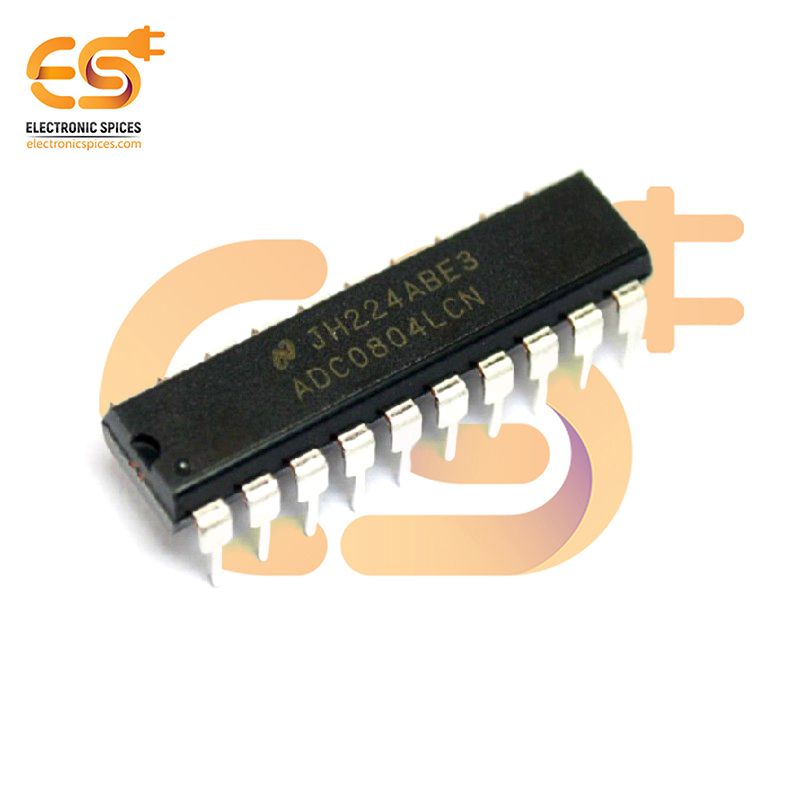

ADC0804 8-Bit Analog to Digital A/D Converter IC (DIP-20 Package)

ADC0804 8-Bit Analog to Digital A/D Converter IC (DIP-20 Package)

The ADC0804 is an 8-bit Analog-to-Digital Converter (ADC) housed in a DIP-20 package. This IC is designed to convert an analog input signal into an 8-bit digital output, making it suitable for a variety of applications requiring low-resolution digital conversion, such as sensor interfacing, data acquisition systems, and embedded control applications. The ADC0804 features an 8-bit resolution, providing 256 discrete digital values to represent the input analog signal. It uses a successive approximation method for analog-to-digital conversion, ensuring a balance of speed and accuracy. The IC provides a parallel 8-bit output, which allows it to interface directly with microcontrollers, processors, or other digital devices without the need for additional decoding or communication protocols. This ADC operates with a supply voltage range of 4.5V to 5.5V, which makes it compatible with common logic levels in digital systems. The conversion process typically takes about 100 microseconds at a 640 kHz clock frequency, ensuring quick data conversion for real-time applications. The ADC0804 also has an easy-to-use logic control interface with a start conversion signal, a ready/busy indicator, and a chip-select input to enable smooth integration into larger systems.

Features:-

• Low Power Consumption
• Easy Interface to Most Microprocessors
• Works with Bandgap Voltage References
• TTL Compatible Inputs and Outputs
