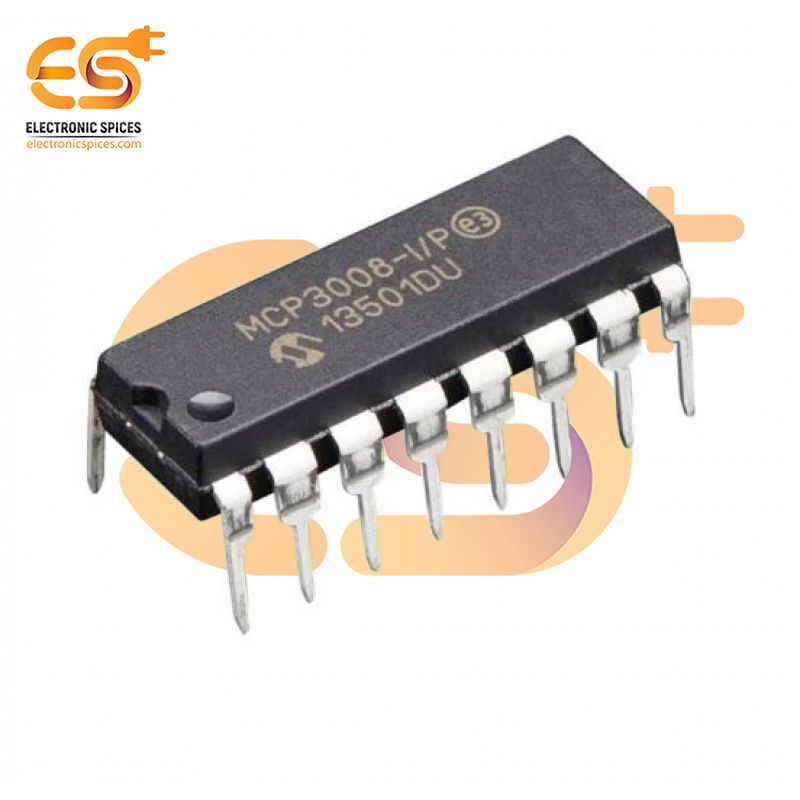

MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC (DIP-16 Package)
Specification:-
- Single supply operation: 2.7V – 5.5V
- 200 ksps max. sampling rate at VDD = 5V
- 75 ksps max. sampling rate at VDD = 2.7V
- 500 µA max. active current at 5V
- All Inputs and Outputs w.r.t. VSS: - 0.6V to VDD + 0.6V
- Storage Temperature: -65°C to +150°C
- Ambient temperature with power applied: -65°C to +150°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD Protection On All Pins (HBM): ≥ 4 kV
SKU: VV9102A
MCP3008 8-Channel 10-Bit A/D Converter with SPI Interface IC (DIP-16 Package)
The MCP3008 is an 8-channel, 10-bit Analog-to-Digital Converter (ADC) with an SPI (Serial Peripheral Interface) interface, housed in a DIP-16 package. This IC is designed to convert multiple analog signals into corresponding digital values for microcontrollers and other digital systems, making it ideal for applications like sensor data acquisition, industrial monitoring, and embedded control systems. The MCP3008 provides 10-bit resolution, offering 1024 discrete output levels, which ensures sufficient precision for many measurement and control tasks. With eight input channels, the ADC can handle multiple analog inputs, making it well-suited for applications involving multiple sensors or other analog devices. The channels are selectable through the SPI interface, which simplifies the design by allowing a single communication bus to manage multiple analog signals. Operating with a supply voltage range of 2.7V to 5.5V, the MCP3008 is compatible with both low-voltage and standard voltage systems. The chip offers a conversion rate of up to 200 ksps (kilo-samples per second), ensuring fast and efficient data processing in real-time applications. The SPI interface supports fast data transfer, making it suitable for high-speed data acquisition.
Features:-
- Low Power Consumption
- Easy Interface to All Microprocessors
- On-chip sample and hold
- Low power CMOS technology
