Specification:-
- Output type: Unbuffered Current
- DAC channels: 1
- Output range: 0 to 2mA
- Settling time: 0.1µs
- High Output Compliance: −10 V to +18 V
- Wide Power Supply Range: ±4.5 V to ±18 V
- Low Power Consumption: 33 m W at ±5 V
- Operating temperature range: 0°C to 70°C
SKU: KL9102A

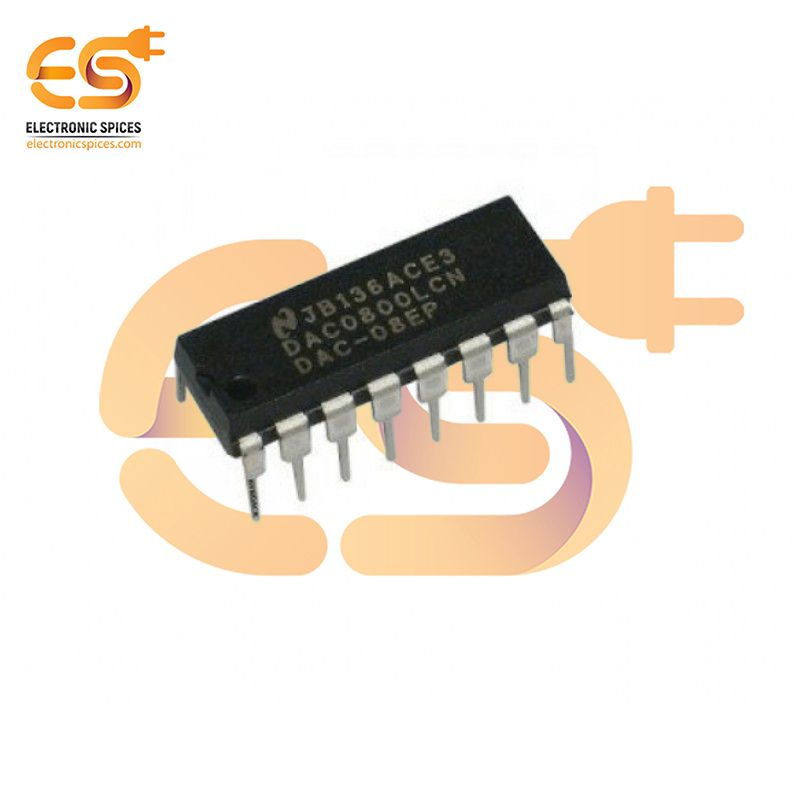

DAC0800 8-Bit Digital to Analog D/A Converter IC (DIP-16 Package)
The DAC0800 is an 8-bit Digital-to-Analog Converter (DAC) IC designed for high-speed, high-accuracy applications, housed in a DIP-16 package. This IC is ideal for converting digital signals into analog outputs in systems requiring precise control or signal processing. The DAC0800 features a resolution of 8 bits, providing 256 discrete output levels, and supports both unipolar and bipolar conversion modes. Key highlights of the DAC0800 include its high conversion speed, low power consumption, and excellent linearity, making it suitable for use in audio processing, waveform generation, instrumentation, and control systems. The IC supports a wide input range for compatibility with most digital systems and requires minimal external components for operation. Operating over a voltage range of ±5V to ±15V, the DAC0800 delivers a wide dynamic range for its analog output. Its reference current input and wide compliance voltage range allow flexible scaling of the output voltage to suit specific application requirements. The device offers fast settling times, typically under 150ns, ensuring real-time performance in dynamic systems.
Features:-
- Low Power Consumption
- Complementary Current Outputs
- 2 Quadrant Wide Range Multiplying Capability
