MOSFET

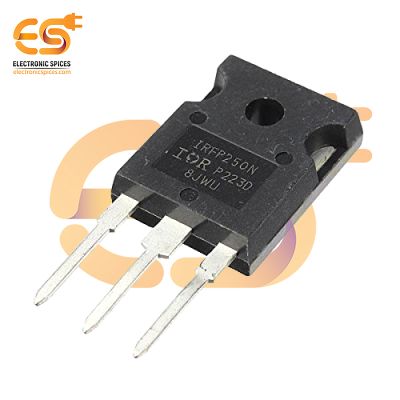

IRFP250N 200V 30A N-Channel Power MOSFET (TO-247 Package)

Specification:-

  • Number of Channels: 1 Channel
  • Transistor Polarity: N-Channel
  • Drain-Source Breakdown Voltage (Vds): 200V
  • Continuous Drain Current (Id): 30A
  • Drain-Source Resistance (Rds On): 0.075 Ohms
  • Gate-Source Voltage (Vgs): 20V
  • Gate Charge (Qg): 123 nC
  • Operating Temperature Range: -55 – 150°C
  • Power Dissipation (Pd): 214W

Available in Pack Of:

SKU: VE8542A

MRP Rs. 117.71
Rs. 79.00 (Incl. Tax)
Rs. 66.95 (+18.00% GST extra)
Rs. 66.95 / pack of 1 = Rs. 66.95 per piece
Buy to Get ₹0 off!
₹0 Special Discount Applied
Quantity
Add to Cart

IRFP250N 200V 30A N-Channel Power MOSFET (TO-247 Package)

The IRFP250N is a high-performance N-Channel Power MOSFET designed to meet the demands of high-power applications. Encased in the reliable TO-247 package, this MOSFET is capable of withstanding a maximum drain-to-source voltage (V????????DS) of 200V and delivering a continuous drain current of up to 30A. It features a low R ????????(????????) DS(on) of 0.085Ω, which ensures minimal conduction losses, making it highly efficient for power-intensive operations. The IRFP250N is optimized for both switching and conduction performance, making it suitable for high-speed applications. Its robust construction supports fast switching times and high-energy pulse handling, ensuring reliable operation even in demanding conditions. The TO-247 package enhances heat dissipation, maintaining device stability under continuous high-current loads. This MOSFET is widely used in applications such as motor controllers, DC-DC converters, inverters, and uninterruptible power supplies (UPS). It is also suitable for industrial and renewable energy systems where efficient energy management and high power handling are critical.

Features:-

  • Dynamic dV/dt rating
  • Fast switching
  • Ease of paralleling
  • Simple Drive Requirements
