IC
Showing 1–12 of 949 results
.jpg)
-
![CA3140 BiMOS Op-Amplifier SMD IC]()
CA3140 BiMOS Op-Amplifier SMD IC
Rs. 99.00Specification:-
- Supply voltage: 4V to 36V
- Directly Replaces Industry Type 741 in Most Application
- Operation at supply voltages up to 36V (18V).
- Very High Input Impedance (ZIN) -1.5T (Typ)
- Very Low Input Current -10pA (Typ) at 15V
-
![FW2003 DIP-16/SOP-16 Radio And Cassette Recorder Circuits IC Pack of 5]()
FW2003 DIP-16/SOP-16 Radio And Cassette Recorder Circuits IC Pack of 5
Rs. 500.00Specification:-
- Package: DIP-16/SOP-16
- Vce(sus) sustained - 0-50
- Pd (W) - 1.47/0.54
- Vin (V) - 0-24
- IF (mA) - 500
-
![IR2110 High and Low Side Driver IC (DIP-14 Package)]()
IR2110 High and Low Side Driver IC (DIP-14 Package)
Rs. 149.00Specification:-
- High side floating supply voltage: -0.3 to 625 V
- High side floating supply offset voltage: VB -25 to VB +0.3 V
- High side floating output voltage: -0.3 to VB +0.3 V
- Low side and logic fixed supply voltage: -0.3 to 25V
- Low side output voltage: -0.3 to VCC+0.3 V
- Logic supply Voltage: -0.3 to VSS+25 V
-
![MC33063 Buck – Boost – Inverting Switching Regulator IC]()
MC33063 Buck – Boost – Inverting Switching Regulator IC
Rs. 119.00Specification:-
- Wide Input Voltage Range: 3 V to 40 V
- High Output Switch Current: Up to 1.5 A
- Adjustable Output Voltage
- Oscillator Frequency Up to 100 kHz
- Precision Internal Reference: 2%
- Ambient temp. with power applied: -60°C to +150°C
-
![ADE7753 Single-Phase Multi-Function Metering SMD IC]()
ADE7753 Single-Phase Multi-Function Metering SMD IC
Rs. 409.00Specification:-
- Mounting: SMD
- Number of: 20 Pins
- Reference 2.4 V with external overdrive capability
- Single 5 V supply, low power (25 mW typical)
- On-chip temperature sensor (±3°C typical)
- Interrupt request pin (IRQ) and status register
-
![74HC595 8-bit Serial to Parallel Shift Register IC DIP-16 Package]()
74HC595 8-bit Serial to Parallel Shift Register IC DIP-16 Package
Rs. 29.00Specification:-
- Number of pins: 16
- Mounting: Through Hole
- Supply Voltage (VCC): − 0.5 to + 7.0V
- Input Voltage (VIN): −1.5V to VCC + 1.5V
- DC Output Current, per pin (IOUT): ± 35 mA
- DC VCC or GND Current, per pin (ICC): ± 70 mA
- Power Dissipation: 600 mW
- Operating Temperature (°C): − 65°C to + 150°C
-
![MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)]()
MCP3201 12-Bit A/D Converter (ADC) with SPI Interface IC (DIP-8 Package)
Rs. 289.00Specification:-
- Single supply operation: 2.7V – 5.5V
- 100ksps max. sampling rate at VDD = 5V
- 50ksps max. sampling rate at VDD = 2.7V
- All Inputs and Outputs: VSS – 0.6V to VDD + 0.6V
- Storage Temperature: -65°C to +150°C
- Ambient temperature with power applied: -55°C to +125°C
- Soldering temperature of leads (10 seconds): +300°C
- ESD Protection On All Pins (HBM): ≥ 4 Kv
-
![CD4053 Triple 2-channel Multiplexer/Demultiplexer SMD IC]()
CD4053 Triple 2-channel Multiplexer/Demultiplexer SMD IC
Rs. 29.00Specification:-
- DC Supply Voltage: -0.5V to +18V
- Input Voltage: -0.5V to VDD +0.5V
- Storage Temperature: -65°C to +150°C
- Power Dissipation: 700 mW
- Lead Temperature: 265°C
-
![L298N Dual Full Bridge Driver IC Multiwatt-15 Package]()
L298N Dual Full Bridge Driver IC Multiwatt-15 Package
Rs. 189.00Specification:-
- Supply voltage: 50 V
- Logic supply voltage: 7 V
- Ven-Input and Enable Voltage: -0.3 to 7 V
- Vsens-Sensing Voltage: -1 to 2.3
- Ptot-Total Power Dissipation: 25 W
- Junction temperature range: -25 to 130 °C
- Storage temperature range: -40 to 150 °C
-
![CD4518 Dual BCD Up Counter IC (DIP-16 Package)]()
CD4518 Dual BCD Up Counter IC (DIP-16 Package)
Rs. 29.00Specification:-
- Maximum input current of 1 µA at 18 V
- Noise margin (over full package-temperature range):
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- 5-V, 10-V, and 15-V parametric ratings
- 100% tested for quiescent current at 20 V
- Standardized, symmetrical output characteristics
-

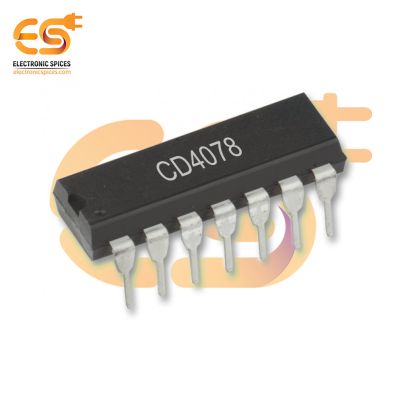

![CD4078 8-Input NOR Gate IC (DIP-14 Package)]()
CD4078 8-Input NOR Gate IC (DIP-14 Package)
Rs. 29.00Specification:-
- Voltage range: 3 to 18V
- 5-V, 10-V, and 15-V parametric ratings
- Noise margin (full package-temperature range) =
- 1 V at VDD = 5 V
- 2 V at VDD = 10 V
- 2.5 V at VDD = 15 V
- Medium-Speed Operation – tPHL, tPLH = 75 ns (typ.) at VDD = 10 V
-
![24C1024 1M bit Serial I2C Bus EEPROM IC (DIP-8 Package)]()
24C1024 1M bit Serial I2C Bus EEPROM IC (DIP-8 Package)
Rs. 469.00Specification:-
- Low-voltage Operation – 2.7 (VCC = 2.7V to 5.5V)
- Voltage on Any Pin with Respect to Ground: -1.0V to +7.0V
- Storage temperature: -65°C to +150°C
- Operating Temperature: -55°C to +125°C
- Maximum Operating Voltage: 6.25V
- DC Output Current: 5.0 mA
- 400 kHz (2.7V) and 1 MHz (5V) Clock Rate
- 256-byte Page Write Mode (Partial Page Writes Allowed)
