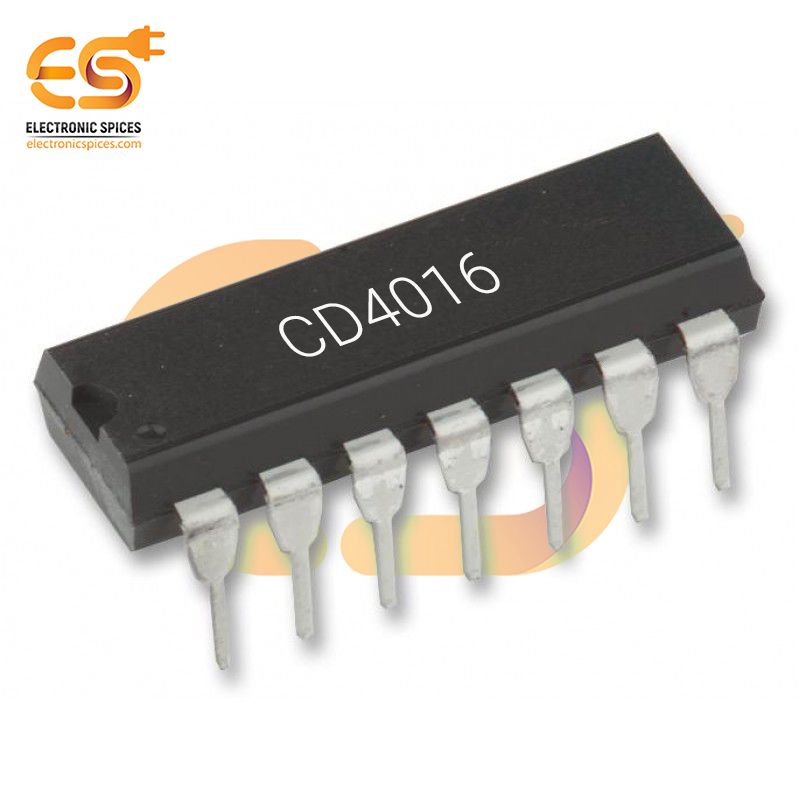

CD4016 Quad Bilateral Switch IC (DIP-14 Package)
Specification:-
- Wide supply voltage range: 3V to 15V
- VDD Supply Voltage: −0.5V to +18V
- VIN Input Voltage: −0.5V to VDD + 0.5V
- TS Storage Temperature Range: −65°C to + 150°C
- Power Dissipation: Dual-In-Line: 700 mW
- Frequency response, switch “ON”: 40 MHz (typ.)
- Lead Temperature: 260°C
SKU: TW8543A
CD4016 Quad Bilateral Switch IC (DIP-14 Package)
The CD4016 is a Quad Bilateral Switch IC housed in a DIP-14 package. This integrated circuit contains four independent bilateral switches, which are commonly used for switching analog or digital signals. The bilateral nature of these switches means they can pass signals in both directions, making them highly versatile for various signal routing, multiplexing, and switching applications in digital and analog circuits. Each switch within the CD4016 is controlled by a single logic input, with the switch turning ON when the input is HIGH and turning OFF when the input is LOW. This allows the CD4016 to be used for switching between different signal paths in communication systems, analog signal processing, and other digital circuits that require precise routing of data or voltage signals. The IC's CMOS construction ensures it has low power consumption, high noise immunity, and fast switching speeds, making it ideal for use in high-performance digital systems. The CD4016 operates over a voltage range of 3V to 15V, making it compatible with both CMOS and TTL logic families. Its compact DIP-14 package makes it easy to integrate into through-hole PCBs and breadboard designs for prototyping.
Features:-
- Wide Supply Voltage Range
- Low Power Consumption
- Easy Integration
