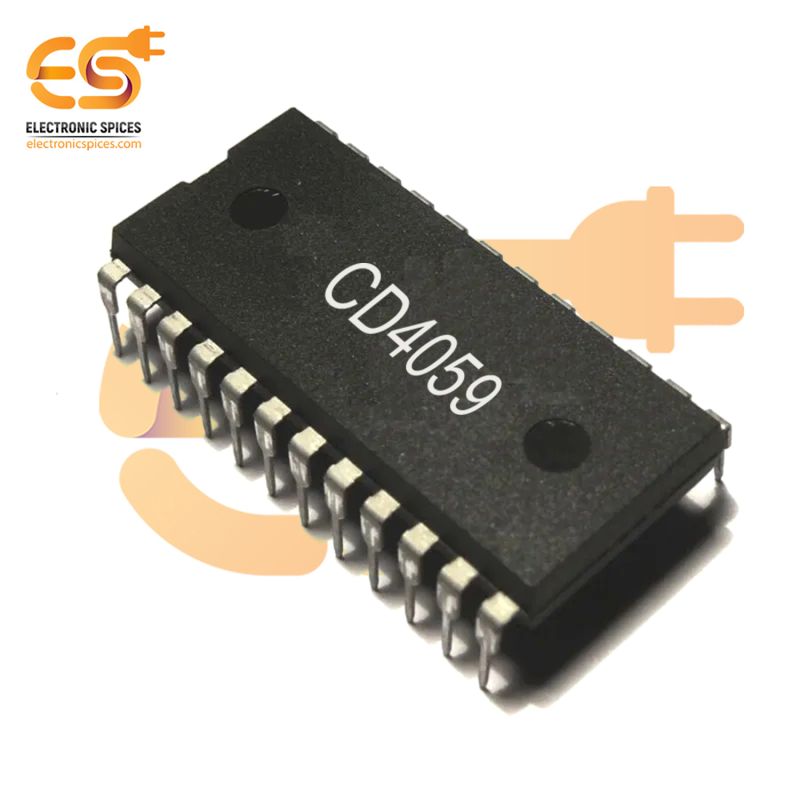

CD4059 Programmable Divide-by-N Counter IC (DIP-24 Package)

CD4059 Programmable Divide-by-N Counter IC (DIP-24 Package)

The CD4059 is a programmable divide-by-N counter IC housed in a DIP-24 package, designed for applications that require adjustable frequency division. This versatile IC allows users to set the division ratio between 3 and 15,999, making it ideal for precision frequency synthesis and timing applications. By selecting the division value through specific inputs, the CD4059 can generate a variety of divided output frequencies based on the input clock signal. The IC operates using an internal counting mechanism, which divides the input frequency according to the programmed division factor. It features programmable control inputs that allow the selection of the division ratio and mode of operation (divide-by-10, divide-by-8, divide-by-5, or divide-by-4). The CD4059 outputs a pulse when the counting cycle completes, which can then be used as a clock or timing signal in digital circuits. With an operating voltage range from 3V to 15V, the CD4059 is compatible with various logic families and power supply configurations, making it suitable for both low-voltage and standard-voltage systems. The IC's CMOS construction ensures low power consumption and high noise immunity, contributing to stable operation in diverse environments.

Features:-

• Wide Supply Voltage Range
• Low Power Consumption
• Easy Integration
• Presettable down-counter
• Fully static operation
