TRANSISTORS

D882 Medium power NPN transistor packs of 100pcs

Specifications:-

1. Transistor type:  D882 Medium power NPN transistor
2. Max Collector Current:  3A
3. Max Collector-Emitter Voltage:  30V
4. Max Collector-Base Voltage:  40V
5. Max Emitter-Base Voltage:  5V
6. Max Collector Dissipation:  10 Watts

2N3055 Audio power amplifier NPN Transistor packs of 50pcs

Specification:-

1. Voltage across collector-emitter  :  60V DC
2. Current through collector  :  15A DC
3. Voltage across base-emitter  :  7V DC
4. Current through base  :  7A DC
5. Voltage across collector-base  :  100V DC
6. Total power dissipation  :  115W

BC548 100mA 30V TO-92 Package General purpose NPN transistor pack of 10 pcs

Specification

1. Collector-Emitter Voltage (VCEO): 30V
2. Continuous Collector Current (IC):  100mA
3. Transition Frequency (fT):  250MHz
4. DC Current Gain (hFE): 110-800
5. Operating Temperature Range: -55 - 150°C
6. Transistor type  :  NPN Transistor

BF494 Medium frequency NPN transistor pack of 20pcs

Specification:-

1. Transistor type:  Medium frequency NPN transistor
2. Collector-Base Voltage:  30V
3. Collector-Emitter Voltage:  20V
4. Emitter-Base Voltage:  5V
5. Continuous Collector Current:  30mA

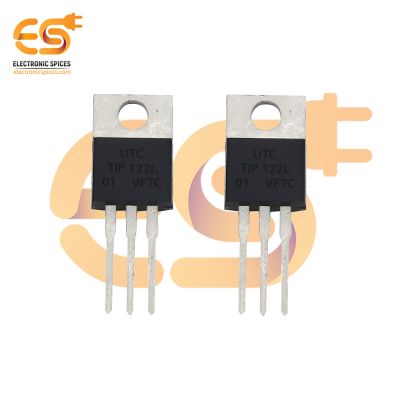

TIP122 Medium power Darlington pair NPN transistor packs of 50pcs

Specification:-

1. Transistor type:  Medium power Darlington pair NPN Transistor
2. High DC Current Gain:  1000
3. Continuous Collector Current:  5A
4. Collector-Emitter voltage:  100V
5. Collector-Base voltage:  100V
6. Emitter Base Voltage:  5V

C2330 Epitaxial NPN amplifier transistor pack of 20pcs

Specifications:-

1. Transistor type  :  Epitaxial NPN transistor
2. Collector-Emitter Volt  :  400V
3. Collector-Base Volt  :  400V
4. Collector Current  :  0.1A
5. Power Dissipation  :  1000mW
6. Current-Gain-Bandwidth  :  50MHz

BC557, -100mA, -45V TO-92 Package General purpose PNP transistor pack of 10pcs

Specification

1. Type:   Transistor
2. Polarity:   PNP
3. Collector - Emitter voltage:  -45 volts
4. Collector current:   -100 mA
5. Gain H(fe):  100/800
6. Power dissipation:  625 mW
7. F(t) minimum:  50 MHz
8. Package: TO-92
9. Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

2SA940 Transistor Silicon PNP Triple Diffused Type (TO-220) Package

Specification:-

• Type Designator: A940
• Material of Transistor: Si
• Polarity: PNP
• Maximum Collector Power Dissipation (Pc): 25 W
• Maximum Collector-Base Voltage |Vcb|: 150 V
• Maximum Collector Current |Ic max|: 1.5 A

2N3904 Bipolar General purpose NPN transistor pack of 20pcs

Specification:-

1. Transistor type: Bipolar NPN Transistor
2. DC Current Gain:  300
3. Continuous Collector Current:  200mA
4. Base- Emitter Voltage:  6V
5. Collector-Emitter Voltage:  40V
6. Collector-Base Voltage:  60V

C945, 150mA, 50V TO-92 Package General purpose NPN transistor pack of 10pcs

Specification:-

• Type:   Transistor
• Polarity:   NPN
• Collector - Emitter voltage:  50 volts
• Collector current:   -150 mA
• Power Consumption : 400 mW
• F(t) minimum:  200 MHz
• Package: TO-92

BC817 500mA 45V TO-92 Package General purpose NPN transistor pack of 10 pcs

Specification

1. Collector-Emitter Voltage (VCEO):45V
2. Continuous Collector Current (IC):  500mA
3. Transition Frequency (fT):  250MHz
4. DC Current Gain (hFE):  100-600
5. Operating Temperature Range: -55 - 150°C
6. Transistor type  :  NPN Transistor

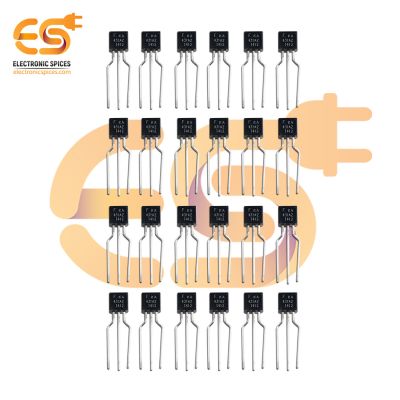

KA431AZ Programmable shunt regulator transistors pack of 100pcs

Specification:-

1. Transistor type:  Programmable shunt regulator transistor
2. Programmable Output Voltage:  2.5V to 36V
3. Dynamic Output Impedance:  0.2
4. Current Capability:  1.0 to 100 mA
5. Low Output Noise Voltage
6. Fast Turn−on Response
