TRANSISTORS

MJE3055T NPN Transistors 60V (TO-220 Package) Pack of 100

• Transistor Polarity - NPN
• Collector-Emitter Voltage (VCEO) - 60V
• Continuous Base Current (IB) - 3A
• Continuous Collector Current (IC) - 10A
• Emitter cut-off current (IC) - 500mA
• DC Current Gain (hFE) - 20
• Operating Temperature Range - (-65 - 150°C)
• Transition Frequency (fT) - 2MHz

TIP42C General purpose PNP transistor packs of 50pcs

Specification:-

1. Transistor type :  PNP transistor
2. Max Collector Current  :  –6A
3. Max Collector-Emitter Voltage  :  –100V
4. Max Collector-Base Voltage  :  –100V
5. Max Emitter-Base Voltage  :  –5V
6. Max Collector Dissipation  :  65W

TIP42C General purpose PNP transistors box of 100pcs

Specification:-

1. Transistor type:  PNP transistor
2. Max Collector Current:  –6A
3. Max Collector-Emitter Voltage:  –100V
4. Max Collector-Base Voltage:  –100V
5. Max Emitter-Base Voltage:  –5V
6. Max Collector Dissipation:  65W

S8550 Audio amplifier PNP transistor pack of 20pcs

Specifications:-

1. Transistor Type:  PNP transistor
2. Max Collector Current(I_C)  :  -0.7A or -700mA
3. Max Collector-Emitter Voltage (V_CE):  -20V
4. Max Collector-Base Voltage (V_CB):  -30V
5. Max Emitter-Base Voltage:  -5V
6. Max Collector Dissipation:  1 Watt
7. Transition Frequency:  100 MHz

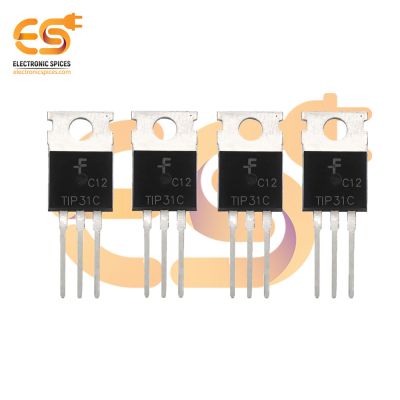

TIP31 Medium power NPN transistor pack of 5pcs

Specification:-

1. Transistor type Medium power NPN transistor
2. Current gain  :  50
3. The maximum voltage across collector-emitter  :  100V
4. Maximum current allowed through collector  :  3A DC

TIP31 Medium power NPN transistor packs of 50pcs

Specification:-

1. Transistor type Medium power NPN transistor
2. Current gain  :  50
3. Maximum voltage across collector-emitter  :  100V
4. Maximum current allowed through collector  :  3A DC

BC557 Bipolar PNP transistor pack of 20pcs

Specification:-

1. Transistor type  :  Bipolar PNP Transistor
2. DC Current Gain  :  300
3. Continuous Collector current  :  100mA
4. Emitter Base Voltage  :  6V
5. Base Current  :  5mA

BC857, -100mA, -45V TO-92 Package General purpose PNP transistor pack of 10pcs

Specification

1. Type:   Transistor
2. Polarity:   PNP
3. Collector - Emitter voltage:  -45 volts
4. Collector current:   -100 mA
5. Gain H(fe):  110/800
6. Power dissipation:  625 mW
7. F(t) minimum:  100 MHz
8. Package: TO-92
9. Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

BC337 Amplifier NPN transistor pack of 20pcs

Specification

1. Transistor type  :  General Purpose NPN Amplifier Transistor
2. Current Gain  :  100 to 630
3. Continuous Collector current  :  800mA
4. Collector-Emitter voltage  :  45 V
5. Collector-Base voltage  :  50V
6. Emitter Base Voltage  :  5V

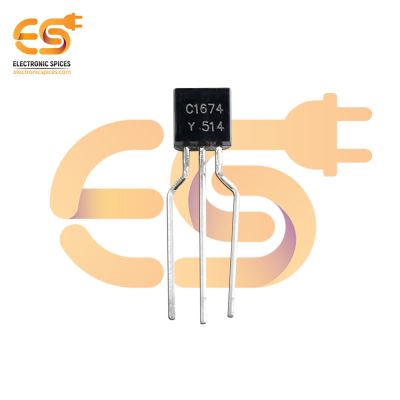

C1674 Epitaxial NPN silicon transistor pack of 20pcs

Specification:-

1. Transistor type  :  High voltage NPN transistor
2. Maximum Collector Power Dissipation  :   0.25W
3. Maximum Collector-Base Voltage  :  30V
4. Maximum Collector-Emitter Voltage  :  20V
5. Maximum Emitter-Base Voltage  :  4V
6. Maximum Collector Current   :  0.02A
7. Transition Frequency  :  300 MHz
8. Collector Capacitance  :  2 pF

MPSA92, -500mA, -300V TO-92 Package PNP Darlington Transistors pack of 10pcs

Specification

1. Package Type: TO-92
2. Transistor Type: PNP Darlington
3. Max Collector Current (IC): -500 mA
4. Max Collector-Emitter Voltage (VCE): -300V
5. Max Collector-Base Voltage (VCB): 30V
6. Max Emitter-Base Voltage (VEBO): 10V
7. Max Collector Dissipation (Pc): 625 milliwatts
8. Max Transition Frequency (fT): 50 MHz
9. Minimum & Maximum DC Current Gain (hFE): 5000
10. Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

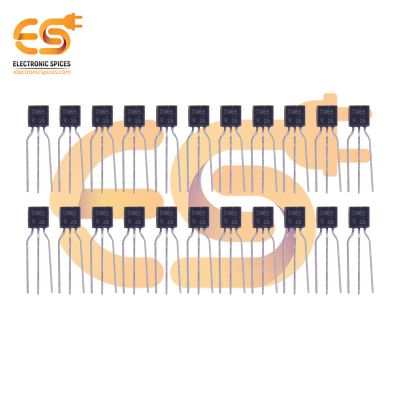

D965 Bipolar NPN transistor packs of 100pcs

Specifications

1. Transistor type  :  NPN transistor
2. Collector-Emitter Voltage  :  20V
3. Collector-Base Voltage  :  40V
4. Collector Current  :  5A
5. Collector Dissipation  :  0.75W
6. DC Current Gain  :  230 to 600
7. Transition Frequency  :  150MHz
